Manufacturer: Arista Networks, Inc
Manufacturer Part Number: DCS-7050S-52-F
Manufacturer Website Address: http://www.aristanetworks.com
Brand Name: Arista Networks
Product Series: 7050
Product Model: 7050S-52

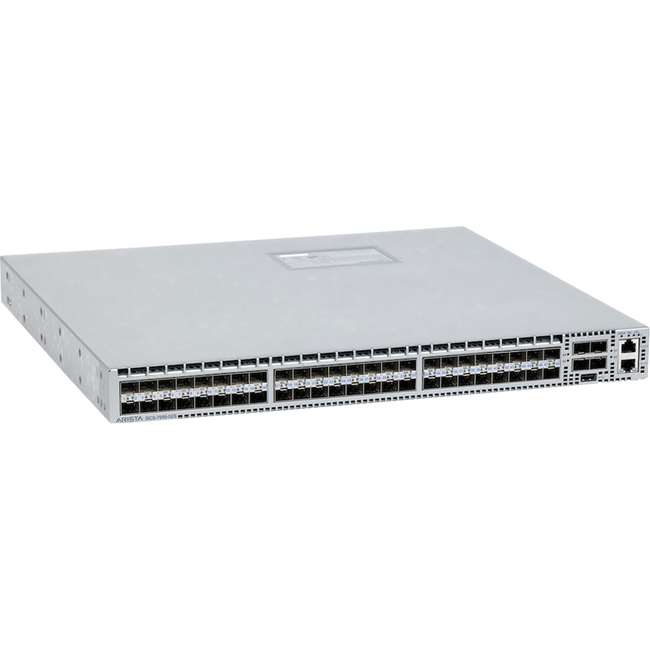

Product Name: 7050S-52 Switch Chassis
Marketing Information:
The Arista 7050 series switches offer wire speed layer 2/3/4 performance with 52 or 64 ports of 10GbE in a compact 1RU chassis. The 75050S-64 switch offers 48 SFP+ and 4 QSFP+ interfaces while the 7050S-52 switch offers 52 SFP+ interfaces. Each 40GbE port can also operate as four independent 10GbE ports to provide a total of 64 10GbE ports in the 7050S-64 model. The Arista 7050 series offers a latency of 800 to 1200 ns in cut-through mode, and a shared 9 MB packet buffer pool is allocated dynamically to ports that are congested. With a typical power consumption of less than 2 watts/port with twinax copper cables, and less than 3 watts/port with SFP/QSFP lasers, the 7050 Series provides industry leading power efficiency for the data center. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch.
Product Type: Switch Chassis
Interfaces/Ports
Port/Expansion Slot Details: 52 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Network Technology: 100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type: SFP+
Number of SFP+ Slots: 52
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 19″
Depth: 16″
Weight (Approximate): 17 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 1 Year
