Manufacturer: Arista Networks, Inc
Manufacturer Part Number: DCS-7050SX-96-R
Manufacturer Website Address: http://www.aristanetworks.com
Brand Name: Arista Networks
Product Series: 7050X
Product Model: 7050SX-96

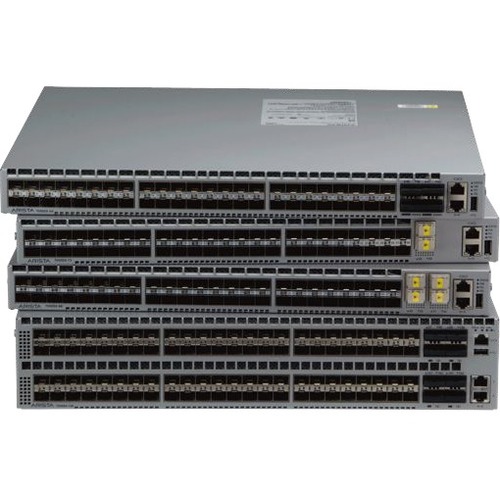

Product Name: 7050SX-96 Layer 3 Switch
Marketing Information:
The Arista 7050SX are members of the Arista 7050X Series and key components of the Arista portfolio of data center switches. The Arista 7050X Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features combined with low latency and advanced features for software defined cloud networking.
Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050SX Series support flexible combinations of 10G and 40G that allow customers to design large leaf and spine networks to accommodate both east-west traffic patterns found in modern data centers, high performance compute and big data environments.
Product Type: Layer 3 Switch
Interfaces/Ports
Modular: No
Port/Expansion Slot Details: 48 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:
- SFP+
- Line Card
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.8″
Width: 19″
Depth: 16″
Weight (Approximate): 20 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
Warranty
Limited Warranty: 1 Year
