Manufacturer: Arista Networks, Inc
Manufacturer Part Number: DCS-7050SX2-72Q-R
Manufacturer Website Address: http://www.aristanetworks.com
Brand Name: Arista Networks
Product Series: 7050X
Product Model: 7050SX2-72Q

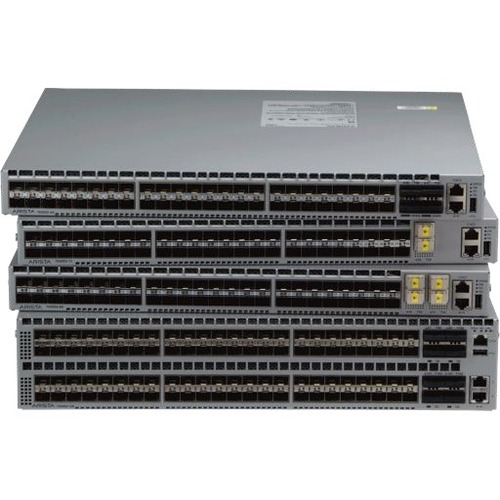

Product Name: 7050SX2-72Q Layer 3 Switch
Marketing Information: The Arista 7050SX are members of the Arista 7050X Series and key components of the Arista portfolio of data center switches. The Arista 7050X Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features combined with low latency and advanced features for software defined cloud networking
Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050SX Series support flexible combinations of 10G and 40G that allow customers to design large leaf and spine networks to accommodate both east-west traffic patterns found in modern data centers, high performance compute and big data environments.
Featuring a choice of seven different 1RU and two 2RU models the 7050SX Series deliver high density 1/10G SFP+ based ports and 10/40G ports using QSFP+. or embedded optics with MXP multi-speed ports for higher density. Each MXP port can enable a choice of 3x 40GbE or 12x 10GbE
All models in the 7050SX Series delivers rich layer 2 and layer 3 features with wire speed performance up to a maximum performance of 2.56Tbps. The Arista 7050SX switches offer low latency from 550ns in cut-through mode, and a shared packet buffer pool of up to 16MB that is allocated dynamically to ports that are congested. With typical power consumption of less than 2 watts per 10GbE port the 7050SX Series provide industry leading power efficiency with airflow choices for back to front, or front to back. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch.
Combined with Arista EOS the 7050X Series delivers advanced features for big data, cloud, virtualized and traditional designs.
Product Type: Layer 3 Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 40GBase-X
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 54
Expansion Slot Type:
- QSFP+
- SFP+
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.8″
Width: 19″
Depth: 16″
Weight (Approximate): 17.30 lb
Miscellaneous
Package Contents:
- 7050SX2-72Q Layer 3 Switch
- 2 x AC Power Supplies
- 2 x C13-C14 Cords
Environmentally Friendly: Yes
Environmental Certification:
- EU WEEE
- EU RoHS
Warranty
Limited Warranty: 1 Year
