Manufacturer: Arista Networks, Inc
Manufacturer Part Number: DCS-7124FX-R
Manufacturer Website Address: http://www.aristanetworks.com
Brand Name: Arista Networks
Product Series: 7100
Product Model: 7124FX

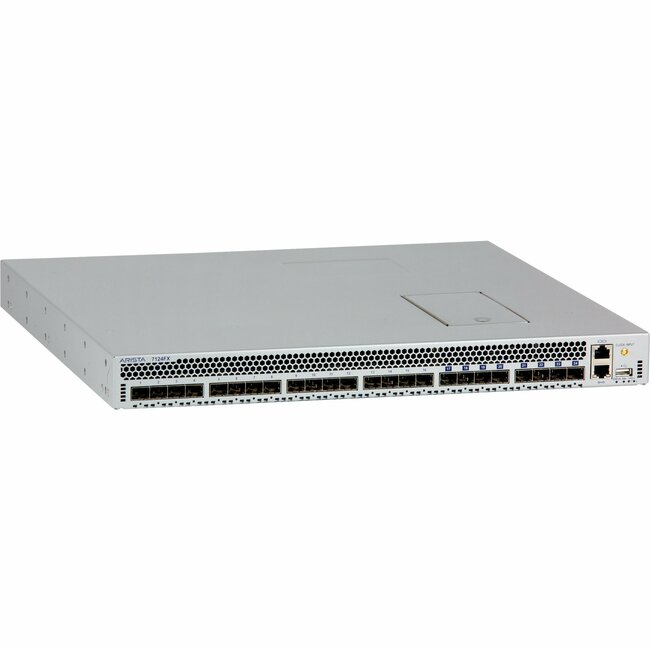

Product Name: 7124FX Application Switch
Marketing Information:
The Arista 7124FX Application Switch is a high performance, ultra-low latency embedded application switch. Based on the award winning Arista 7124SX, the 7124FX adds an inline programmable subsystem that is directly integrated with the forwarding plane. The 7124FX offers 24 1/10GbE wirespeed ports in a compact and power efficient 1RU chassis. The 16 standard front panel ports accommodate the full range of 10GbE SFP+ and GbE SFP options, allowing for maximum flexibility and deployment options. The 8 FX ports are directly connected to the user programmable subsystem, providing a flexible and open platform for custom and 3rd party embedded applications.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: No
Modular: No
Stack Port: No
I/O Expansions
Number of Total Expansion Slots: 24
Expansion Slot Type: SFP+
Number of SFP+ Slots: 24
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 19″
Depth: 16″
Weight (Approximate): 18 lb
Miscellaneous
Package Contents:
- 7124FX Application Switch
- 2 x AC Power Supply
- 2 x Power Cords (C13-C14)
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 1 Year
