Manufacturer: Arista Networks, Inc
Manufacturer Part Number: DCS-7260CX3-64-R
Manufacturer Website Address: http://www.aristanetworks.com
Brand Name: Arista Networks
Product Series: 7260X
Product Model: 7260CX3-64

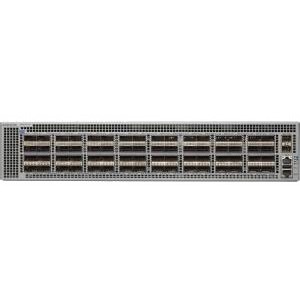

Product Name: 7260CX3-64 Layer 3 Switch
Marketing Information: Increased adoption of high performance servers coupled with applications using higher bandwidth is accelerating the need for dense 40 and 100 Gigabit Ethernet switching in both leaf and spine tiers of modern networks. The Arista 7060X and 7260X Series are purpose built high performance, high density, fixed configuration, data center switches with wire speed layer 2 and layer 3 features, combined with advanced features for software defined cloud networking and emerging requirements. The Arista 7060X and 7260X are key components of the Arista portfolio of data center switches delivering a rich choice of interface speed and density allowing customers to seamlessly evolve from existing 10GbE and 40GbE to 25GbE, 50GbE and 100GbE.
The 7060CX-32S and 7260CX-64 support a flexible combination of speeds including 10G, 25G, 40G and 100G in compact form factors that allows customers to design networks to accommodate the myriad different applications and east-west traffic patterns found in modern data centers whilst providing investment protection.
The 7260QX Series are purpose built high density and low power 40GbE systems that enable cost effective solutions with flexible and scalable resources for layer 2 and layer 3 designs.
Combined with Arista EOS both the 7060X and 7260X Series deliver advanced features for cloud, big data, virtualized and traditional data centers.
Product Type: Layer 3 Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details:
- 64 x 100 Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 100 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 66
Expansion Slot Type:
- QSFP100
- SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 19″
Depth: 18″
Weight (Approximate): 34 lb
Miscellaneous
Package Contents:
- 7260CX3-64 Layer 3 Switch
- 2 x AC Power Supplies
Environmentally Friendly: Yes
Environmental Certification:
- EU WEEE
- EU RoHS
Warranty
Limited Warranty: 1 Year
