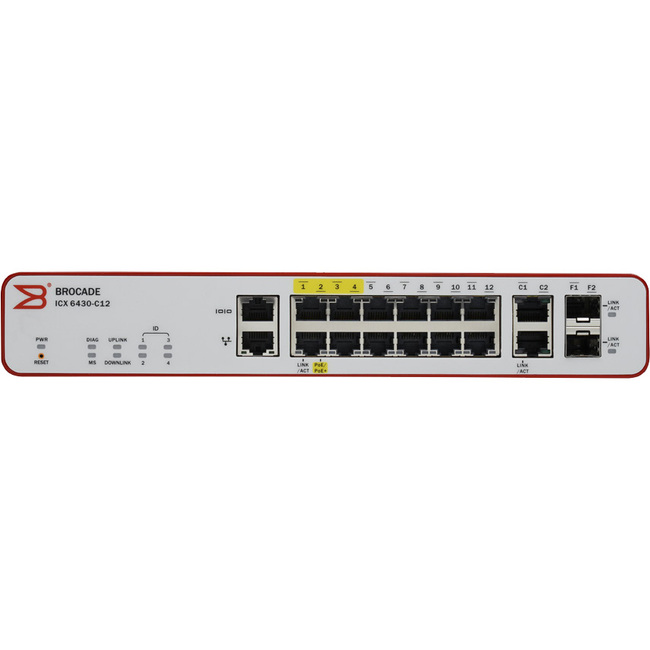

Brocade 12-Port 1 GbE Compact Switch

Today’s organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.

Brocade® ICX® 6430 and 6450 Switches provide enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price-without compromising performance and reliability. The Brocade ICX 6430 and 6450 are available in 12-, 24-, and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports (see Figures 1 and 2)-with or without IEEE 802.3af Power over Ethernet (PoE) and 802.3at Power over Ethernet Plus (PoE+)-to support enterprise edge networking, wireless mobility, and IP communications.

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 14
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:

• 14 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• Gigabit Ethernet
• Fast Ethernet

Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Physical Characteristics
Form Factor: Desktop
Height: 1.7″
Width: 10.6″
Depth: 8.4″
Weight (Approximate): 4 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• RoHS-6
• WEEE

Warranty
Limited Warranty: Lifetime
