Manufacturer: Brocade Communications Systems, Inc
Manufacturer Part Number: ICX6430-24P
Manufacturer Website Address: http://www.brocade.com
Brand Name: Brocade
Product Model: ICX 6430-24P

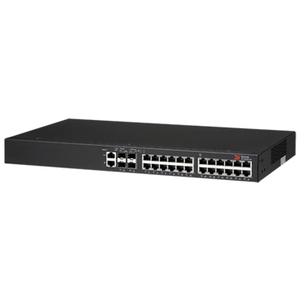

Product Name: ICX 6430-24P Ethernet Switch
Marketing Information:
Today’s organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks-at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports-with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+-to support enterprise edge networking, wireless mobility, and IP communications.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Modular: No
Stack Port: Yes
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Desktop
Height: 1.7″
Width: 17.4″
Depth: 9.5″
Weight (Approximate): 10.08 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- WEEE
Warranty
Limited Warranty: Lifetime
