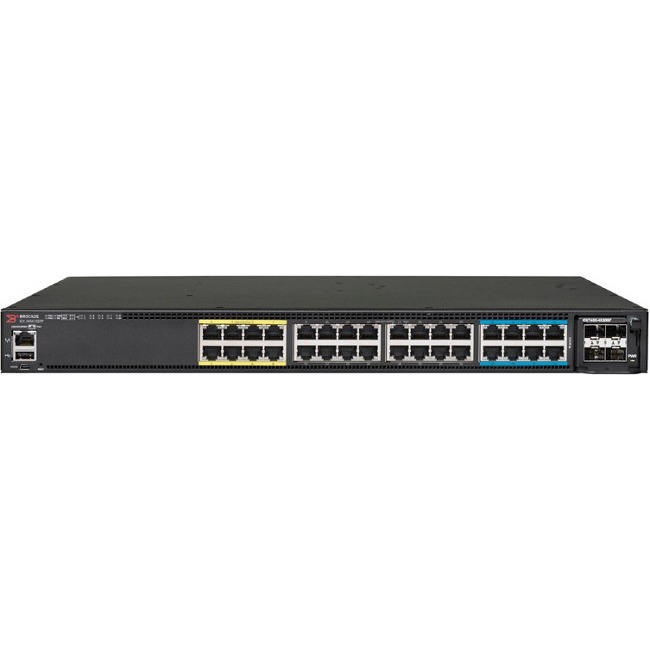

Brocade ICX 7450-32ZP Layer 3 Switch

MFR#

ICX7450-32ZP

Low stock, check availability

Product Type: Layer 3 Switch
Product Family: ICX 7450
Brand Name: Brocade
Form Factor: Rack-mountable
Ethernet Technology: Gigabit Ethernet
Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Add to quote cart

Ask a Product Specialist

Looking for something else or have a question about this product?
Overview
General Information
Manufacturer: Brocade Communications Systems, Inc
Manufacturer Part Number: ICX7450-32ZP
Manufacturer Website Address: http://www.brocade.com
Brand Name: Brocade
Product Series: ICX 7450
Product Model: ICX 7450-32ZP
Product Name: ICX 7450-32ZP Layer 3 Switch
Marketing Information:

Enterprise Stackable Switch Delivers Premium Capabilities and Ultimate Flexibility The Brocade® ICX® 7450 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It offers market-leading stacking density with up to 12 switches (576 1 GbE and 48 10 GbE ports) per stack and combines chassis-level performance and reliability with the flexibility, cost- effectiveness, and “pay as you grow” scalability of a stackable solution. In addition, this mid-market stackable switch is the first in its class to offer 40 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

The unique design of the Brocade ICX 7450 provides three modular slots, offering up to 12 1/10 GbE SFP/SFP+ ports, 12 10GBASE-T ports, or up to three 40 GbE QSFP+ ports for uplink or stacking. As a result, the Brocade ICX 7450 can easily deliver sufficient bandwidth between the edge and aggregation layers to support expanding video traffic, VDI adoption, and high- speed wireless 802.11ac deployment. Additionally, the Brocade ICX 7450 delivers wire-speed, non-blocking performance across all ports for flawless support of latency-sensitive applications.

The Brocade ICX 7450 is an ideal network solution for campus network 1 GbE and 2.5 GbE access or small aggregation deployment with 10 GbE or 40 GbE uplinks to the core. The Brocade ICX 7450 also makes a very suitable data center Top-of-Rack (ToR) solution, delivering a mix of 1 GbE and 10 GbE server connectivity ports with 10 GbE or 40 GbE uplinks to the data center aggregation or core.

Scaling Out Ports as Demand Grows

The Brocade ICX 7450 is easy to deploy, manage, and integrate into both new and existing networks. Organizations can buy only what they need today, and easily scale out as demand grows and new technologies emerge. With three modular slots, the Brocade ICX 7450 enables organizations to grow their networks when necessary. Organizations can initially deploy 1 GbE or 10 GbE uplink ports and upgrade to 40 GbE ports on- demand with a new, high-speed module.

Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 32
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

  • 32 x Gigabit Ethernet Network
  • 3 x Expansion Slot

Media & Performance
Media Type Supported:

  • Optical Fiber
  • Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-TX
I/O Expansions
Number of Total Expansion Slots: 3
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 15.5″
Weight (Approximate): 15.87 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

  • RoHS-6
  • WEEE

Warranty
Limited Warranty: Lifetime

Specifications
Weight 15.87 kg
Dimensions 17.3 × 1.7 cm
Product Type

Layer 3 Switch

Product Family

ICX 7450

Brand Name

Brocade

Form Factor

Rack-mountable

Ethernet Technology

Gigabit Ethernet

Media Type Supported

Twisted Pair

Manageable

Yes

Stack Port

Yes

Total Number of Network Ports

32

Power Source

Power Supply

Layer Supported

3
