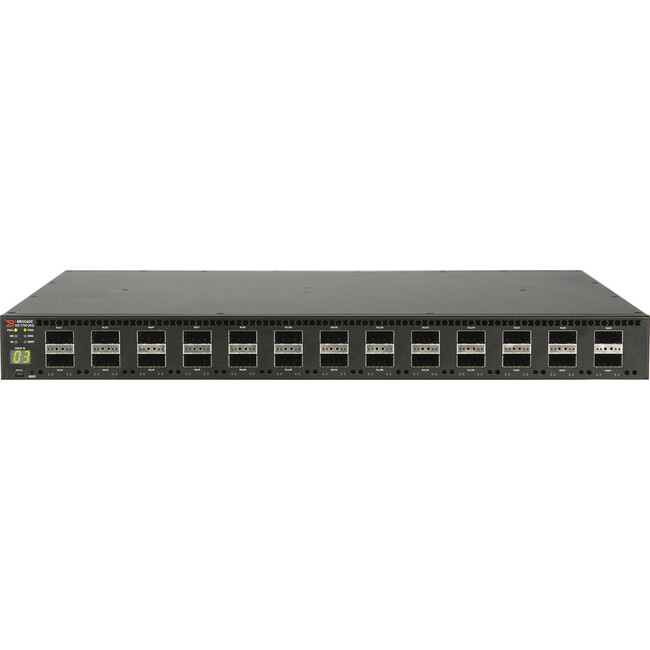

Brocade ICX 7750-26Q Layer 3 Switch

General Information
Manufacturer: Brocade Communications Systems, Inc
Manufacturer Part Number: ICX7750-26Q
Manufacturer Website Address: http://www.brocade.com
Brand Name: Brocade
Product Series: ICX 7750
Product Model: ICX 7750-26Q
Product Name: ICX 7750-26Q Layer 3 Switch
Marketing Information: Today’s campus network core and aggregation layers are quickly moving to 10 and 40 Gigabit Ethernet (GbE) switching as enterprises rapidly adopt applications such as High-Definition (HD) video and Bring Your Own Device (BYOD) initiatives, which drive the need for resilient, high-bandwidth access networks. To meet these challenges, campus network solutions must provide better performance, port density, reliability, security, Quality of Service (QoS), and Total Cost of Ownership (TCO).
Product Type: Layer 3 Switch
Interfaces/Ports
Stack Port: Yes
Port/Expansion Slot Details: 26 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology: 40 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots: 27
Expansion Slot Type: QSFP
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 16″
Weight (Approximate): 19.43 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• RoHS-6
• WEEE

Warranty
Limited Warranty: Lifetime
