Manufacturer: Brocade Communications Systems, Inc
Manufacturer Part Number: BR-VDX6940-24Q-AC-R
Manufacturer Website Address: http://www.brocade.com
Brand Name: Brocade
Product Line: VDX
Product Series: 6940
Product Model: 6940-36Q

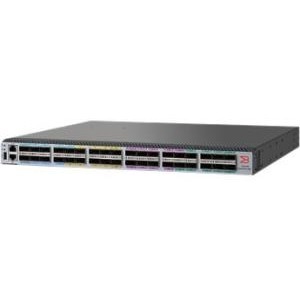

Product Name: VDX 6940-36Q Ethernet Switch
Marketing Information:
Advanced Features Enable Data Center Transformation
The data center is evolving, driving requirements for infrastructure that can support dynamic growth in Virtual Machines (VMs), distributed applications, and Big Data, as well as the transition to cloud-based computing-without compromising performance. The Brocade® VDX® 6940 and the Brocade VDX family of switches deliver the performance, flexibility, scale, and efficiency essential to modern data centers, including cloud and highly virtualized environments.
Optimizes Scale-Out Architecture
Brocade VDX switches are designed to help organizations stay ahead of application-driven network change by enabling agile growth through a scale-out architecture. This approach offers three key benefits. First, it enables network expansion as a business grows over time. Data center administrators can horizontally scale spine switches as the number of leaf switches increases. Second, scale-out architecture also enables the creation of resilient network fabrics, eliminating a single point of failure and potential downtime. Third, and most important, scale-out network architecture delivers a compelling economic benefit. Unlike scale-up, a scale-out model reduces upfront investment. And by using high-density fixed switches, it lowers the Total Cost of Ownership (TCO), reducing power, cooling, and data center space.
Packaged Quantity: 1
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 24 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 40 Gigabit Ethernet
Network Technology: 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 24
Expansion Slot Type: QSFP+
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 17.2″
Weight (Approximate): 19.62 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
