Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: NIM-1GE-CU-SFP
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

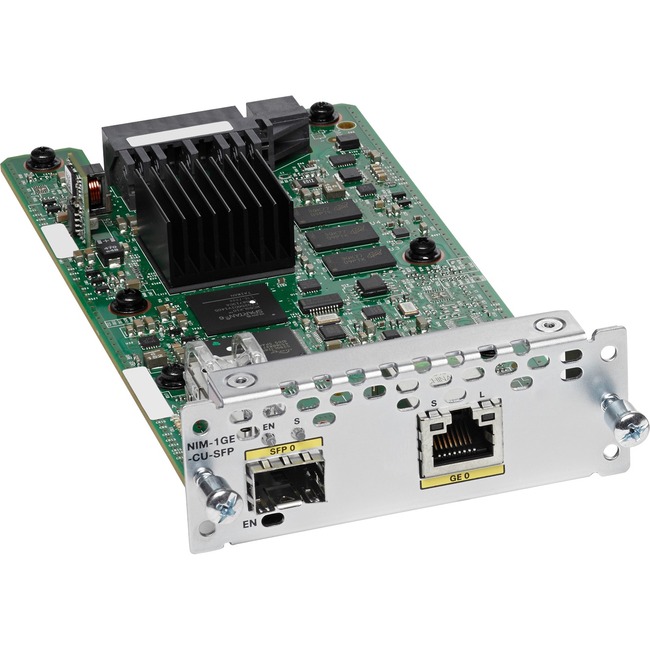

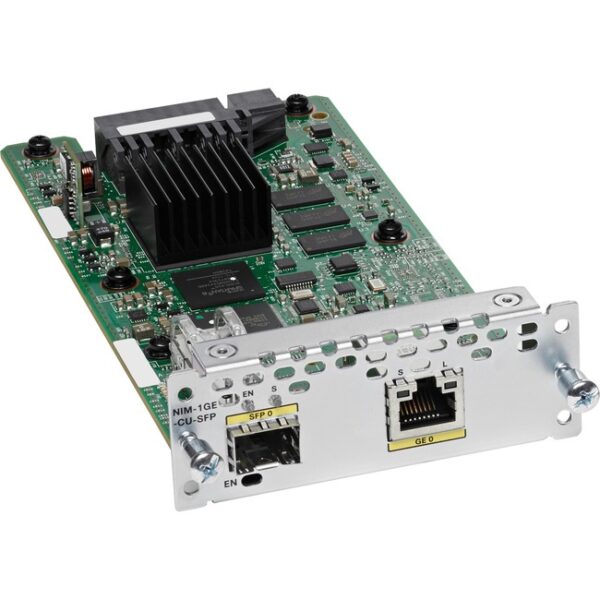

Product Name: 1-Port Gigabit Ethernet WAN NIM
Marketing Information:
Cisco® Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
Product Type: WAN Module
Technical Information
Application/Usage: Wide Area Network
Interfaces/Ports
Total Number of Ports: 1
Connector Type: RJ-45
Interfaces/Ports Details: 1 x RJ-45 1000Base-T WAN
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-X
Maximum Data Transfer Rate: 1 Gbit/s
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Physical Characteristics
Height: 1.3″
Width: 3.5″
Depth: 7.2″
Weight (Approximate): 0.53 lb
Miscellaneous
Compatibility: Cisco 4000 Series Integrated Services Routers
