Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CISCO2691
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 2600
Product Model: 2691

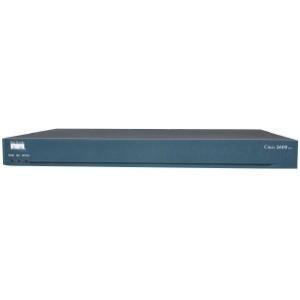

Product Name: 2691 Router
Marketing Information: Driven by a powerful CPU processor along with high-performance DSPs and auxiliary processors on various interfaces, the Cisco 2600 Series supports advanced QoS, security, and network integration features required in today’s evolving branch offices. Compared to the Cisco 2600XM models, the Cisco 2691 is designed to offer a higher degree of versatility, providing greater throughput for higher density WAN applications, support for high-speed interfaces and increased performance to handle new services.
The Cisco 2691 Multiservice Platform provides a 1-network module slot platform with 2 fixed 10/100 BaseT Ethernet ports, 3 integrated WIC slots, and 2 Advanced Integration Module (AIM) slots, with performance up to 70 Kpps.
Product Type: Router
Interfaces/Ports
Total Number of Ports: 2
Management Port: Yes
Number of Network (RJ-45) Ports: 2
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type:
- WIC
- AIM
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Memory
Standard Memory: 128 MB
Power Description
Power Consumption: 105 W
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 17.1″
Depth: 11.2″
Weight (Approximate): 15 lb
Miscellaneous
Package Contents:
- 10/100 Dual Ethernet Router (CISCO2691)
- 6-foot (1.8-meter) power cord
- Rack-mount brackets with screws for 19-inch rack
- Rack-mount brackets with screws for 23-inch rack
- Grounding lug and bracket
- RJ-45-to-DB-9 adapter cable for console connection
- RJ-45-to-DB-25 adapter cable for modem connection
- Ethernet cable
- Optional equipment (such as network connection cables or additional rack-mount brackets)
- Cisco 2600 Series Modular Routers Quick Start Guide
- Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series Regulatory Compliance and Safety Information document
- 32MB Cisco Flash factory default for the Cisco 2691 (MEM2691-32CF-INCL)
- Blank Network Module Panel (NM-BLANK-PANEL)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2691 Series IOS IP
- 128MB DIMM DRAM Memory factory default for the Cisco 2691 (MEM2691-128D-INC)
Warranty
Limited Warranty: 90 Day
