Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N3K-C3232C
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 3000
Product Model: 3232C

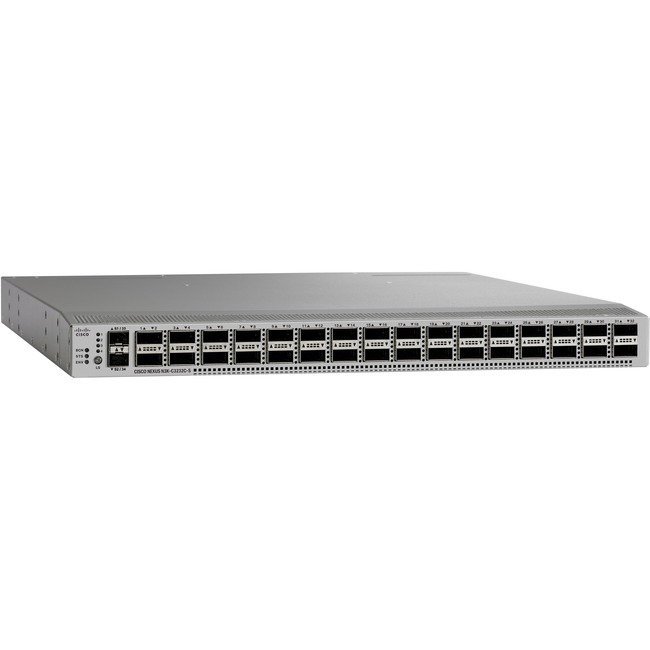

Product Name: 3232C Switch Chassis
Marketing Information:
The Cisco Nexus® 3232C Switch is a dense, high-performance, power-efficient, 100-Gbps switch designed for the data center. This compact, 1-rack-unit (1RU) model offers wire-rate Layer 2 and 3 switching on all ports. It is a member of the Cisco Nexus 3200 platform and runs the industry-leading Cisco® NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. The comprehensive programmability features help enable organizations to run today’s applications while also preparing them for demanding and changing application needs such as big data, cloud, and virtualization. The Cisco Nexus 3232C supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.
Product Type: Switch Chassis
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots: 32
Expansion Slot Type: QSFP
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 22.4″
Depth: 17.3″
Weight (Approximate): 22.20 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
