Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: 76-ES+XT-4TG3C
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: 76-ES+XT-4TG3C

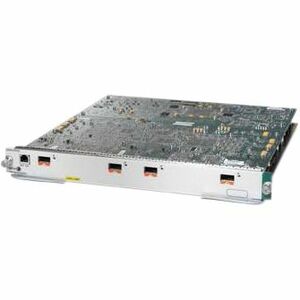

Product Name: 4-Port Ethernet Services Plus Extended Transport Line Card
Marketing Information:
The Cisco 7600 Series Ethernet Services Plus Extended Transport (ES Plus XT) line cards allow service prioritization for voice, video, data, and wireless mobility services and can connect to LAN, WAN, and Optical Transport Network Physical Layer (OTN PHY) interfaces. Service providers and enterprises benefit from the efficiency gains in power consumption, improved economics from higher density, as well as advanced Carrier Ethernet features, which can be transported using G.709 and Forward Error Correction (FEC) across dense wavelength-division multiplexing (DWDM) networks, enabling optical links to span greater distances.
Product Type: Service Module
Technical Information
Application/Usage:
- Optical Network
- Data Networking
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: XFP
Physical Characteristics
Form Factor: Hot-swappable
Height: 1.8″
Width: 15.4″
Depth: 16″
Weight (Approximate): 12.40 lb
Miscellaneous
Package Contents:
- 4-Port Ethernet Services Plus Extended Transport Line Card
- Distributed Forwarding Card 3C (DFC-3C)
Compatibility:
Cisco 7600 Series Router Chassis (except Cisco 7603)
Warranty
Limited Warranty: 90 Day
