Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: EHWIC-4ESG
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

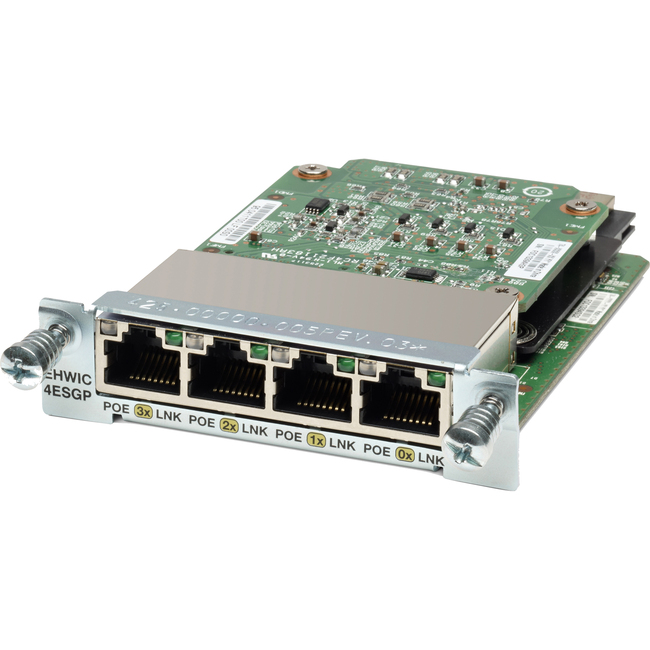

Product Name: 4-Port Gigabit Ethernet Enhanced High-Speed WAN Interface Card
Marketing Information:
When inserted in a Cisco 1900, 2900, or 3900 Series ISR, the Gigabit Ethernet EHWICs provide a fully integrated, secure networking and converged IP communications solution. From a single platform with an integrated switch, you can connect IP phones, wireless access points, and IP-based video cameras to your network and power them using the IEEE 802.3af or Cisco ePoE. With the optional integration of Cisco Unified Communications Manager Express, the router can also provide call processing for the phones. As users attempt network access, the Gigabit Ethernet EHWIC can use IEEE 802.1x to validate the credentials of the end device and place the users in the appropriate VLAN or Cisco TrustSec™ group. As the end-user data leaves the LAN, the router can then encrypt the traffic and place it on a multitude of VPNs, securing the communications among branch offices and central sites.
Product Type: Interface Module
Technical Information
Application/Usage:
- Data Networking
- Wide Area Network
Interfaces/Ports
Total Number of Ports: 4
Connector Type: RJ-45
Interfaces/Ports Details: 4 x RJ-45 10/100/1000Base-T WAN
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Physical Characteristics
Height: 0.8″
Width: 3.1″
Depth: 4.8″
Weight (Approximate): 0.17 lb
Miscellaneous
Compatibility: Cisco Switch Series:
- 3900
- 2900
- 1900
Warranty
Limited Warranty: 90 Day
