Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WSP-Q40GLR4L=
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: WSP-Q40GLR4L

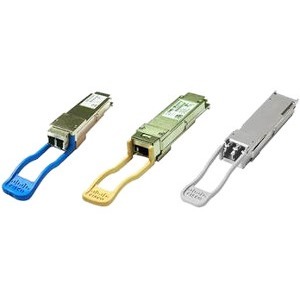

Product Name: 40GBase-LR4L QSFP Module for SMF
Marketing Information:
The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
Product Type: QSFP
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 40GBase-LR4 Network
Media & Performance
Fiber Mode Supported: Single-mode
Physical Characteristics
Form Factor: Hot-swappable
Height: 0.5″
Width: 0.7″
Depth: 2.9″
Miscellaneous
Compatibility: MSA Compliant
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 90 Day
