Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: SM-X-6X1G
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

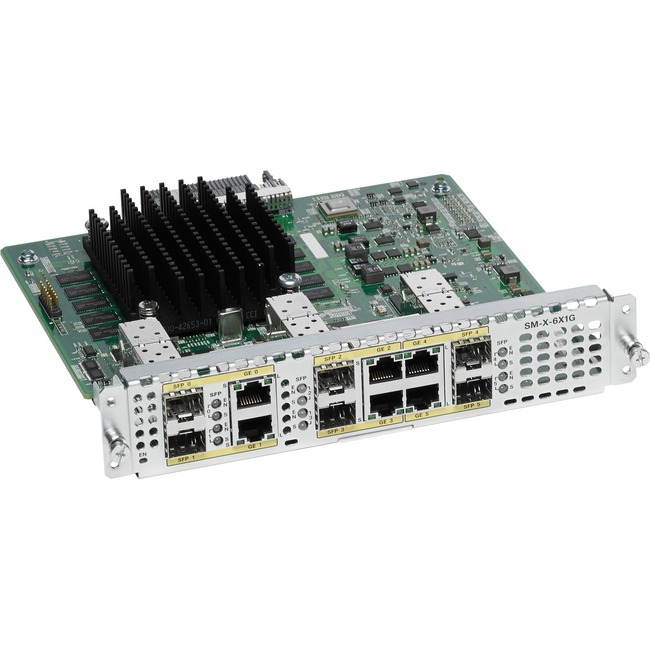

Product Name: 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module
Marketing Information:
Cisco Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
Product Type: Service Module
Packaged Quantity: 1
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports: 6
Connector Type: RJ-45
Interfaces/Ports Details: 6 x RJ-45 10/100/1000Base-TX LAN
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: SFP (mini-GBIC)
Physical Characteristics
Height: 1.6″
Width: 8.1″
Depth: 8.2″
Weight (Approximate): 1.92 lb
Miscellaneous
Compatibility: Cisco 4000 Series Integrated Services Router
Country of Origin: China
