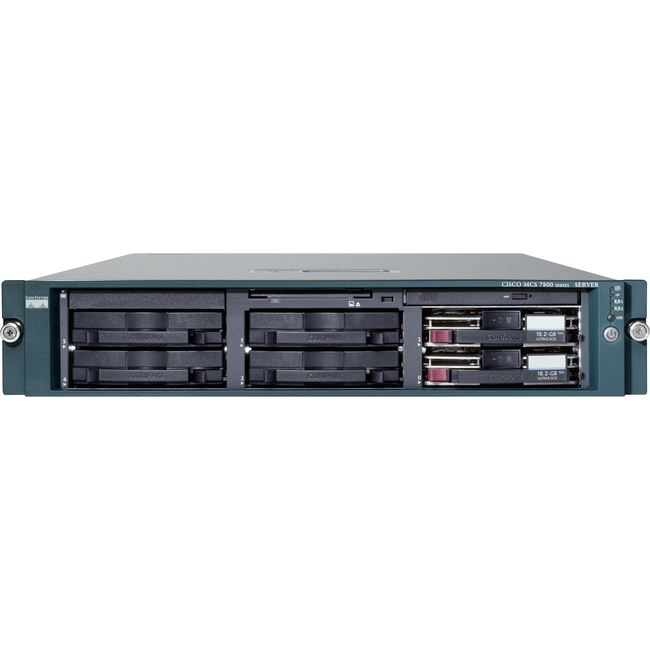

Cisco 7800 MCS 7835-H2 2U Rack Server – 1 x Intel Xeon 5140 2.33 GHz – 2 GB RAM – 144 GB HDD – Serial Attached SCSI (SAS) Controller

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MCS7835H2-K9-CMB2
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 7800
Product Model: MCS 7835-H2
Product Name: MCS 7835-H2 Media Convergence Server
Marketing Information: The Cisco MCS 7835-H2 Media Convergence Server is a robust, highly available server platform designed to support today’s unified communications applications; it uses a Smart Array P400 Controller with a 256-MB cache to provide onboard Redundant Array of Independent Disks (RAID) support.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: 5140
Processor Core: Dual-core (2 Core)
Processor Speed: 2.33 GHz
Cache: 4 MB
Memory
Standard Memory: 2 GB
Maximum Memory Supported: 32 GB
Memory Technology: DDR2 SDRAM
Number of Total Memory Slots: 8
Storage
Number of Hard Drives: 2
Total Hard Drive Capacity: 144 GB
Hard Drive Interface: SAS
Hard Drive RPM: 10000
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Operating System
Operating System: Yes
Software
Software Included: Cisco Unified Communications Manager 6.1
Power Description
Input Voltage:

• 110 V AC
• 220 V AC

Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1470 W
Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4″
Width: 17.5″
Depth: 26″
Weight (Approximate): 60 lb
