Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MCS7835I3-K9-CMC2
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 7800
Product Model: MCS 7835-I3

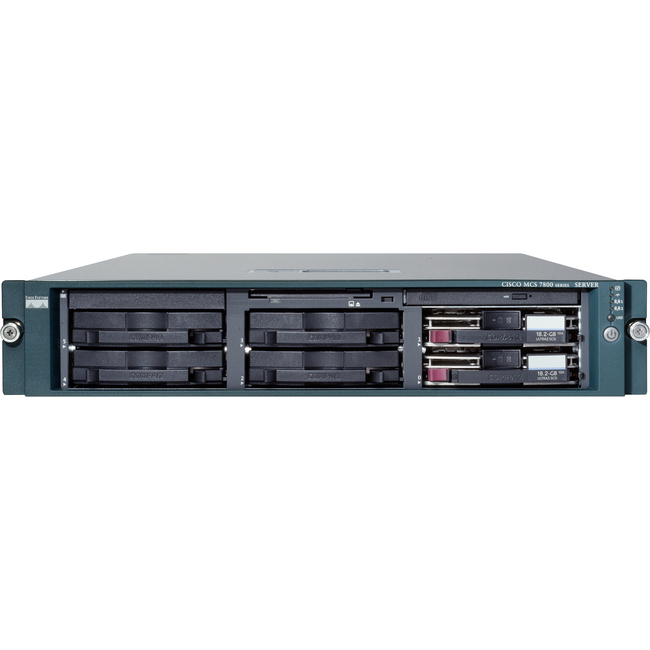

Product Name: MCS 7835-I3 Media Convergence Server
Marketing Information:
The Cisco MCS 7835-I3 Media Convergence Server is a high-availability server platform for Cisco Unified Communications Solutions. An integral part of a complete, scalable architecture for a new generation of high-quality IP voice solutions that run on enterprise data networks, the Cisco MCS 7835-I3 delivers the high performance and availability demanded by today’s enterprise networks and it is easy to deploy and highly cost-effective.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5504
Processor Core: Quad-core (4 Core)
Processor Speed: 2 GHz
Cache: 4 MB
Memory
Standard Memory: 4 GB
Maximum Memory Supported: 128 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 16
Storage
Number of Hard Drives: 2
Total Hard Drive Capacity: 292 GB
Hard Drive Interface: SAS
Hard Drive RPM: 10000
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
VGA: Yes
Operating System
Operating System: Yes
Software
Software Included:
Cisco Unified Communication Manager 7.1
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1350 W
Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.3″
Width: 17.5″
Depth: 28.8″
Weight (Approximate): 64 lb
Warranty
Limited Warranty: 1 Year
