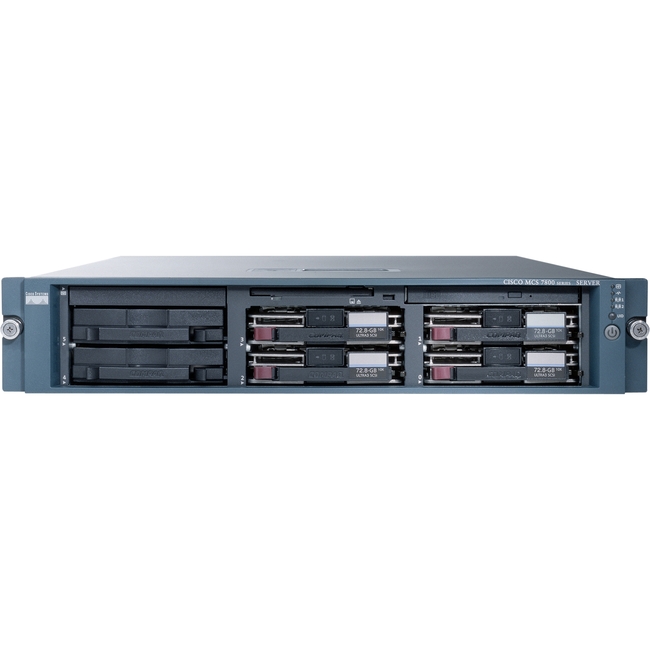

Cisco 7800 MCS 7845-H2 2U Rack Server – 2 x Intel Xeon 5140 2.33 GHz – 2 GB RAM – 288 GB HDD – Serial Attached SCSI (SAS) Controller

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MCS-7845-H2-IPC1
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 7800
Product Model: MCS 7845-H2
Product Name: MCS 7845-H2 Media Convergence Server
Marketing Information: The Cisco MCS 7845-H2 Media Convergence Server is a high-availability server platform for Cisco Unified Communications Solutions. It is an integral part of a complete, scalable architecture for a new generation of high-quality IP voice solutions that run on enterprise data networks. It delivers the high performance and availability demanded by today’s enterprise networks and represents an innovative solution that is easy to deploy and highly cost-effective. At only 2 rack units (2RUs) high, the Cisco MCS 7845-H2 packs tremendous power in a low-profile chassis that minimizes rack space.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: 5140
Processor Core: Quad-core (4 Core)
Processor Speed: 2.33 GHz
Cache: 4 MB
Memory
Standard Memory: 2 GB
Maximum Memory Supported: 32 GB
Memory Technology: DDR2 SDRAM
Number of Total Memory Slots: 8
Storage
Number of Hard Drives: 4
Total Hard Drive Capacity: 288 GB
Hard Drive Interface: SAS
Hard Drive RPM: 10000
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Network (RJ-45): Yes
VGA: Yes
Operating System
Operating System: No
Power Description
Input Voltage:

• 110 V AC
• 220 V AC

Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4″
Width: 17.5″
Depth: 26″
