Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C819HG-U-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: 819HG
Product Name: 819HG Integrated Service Router
Marketing Information:

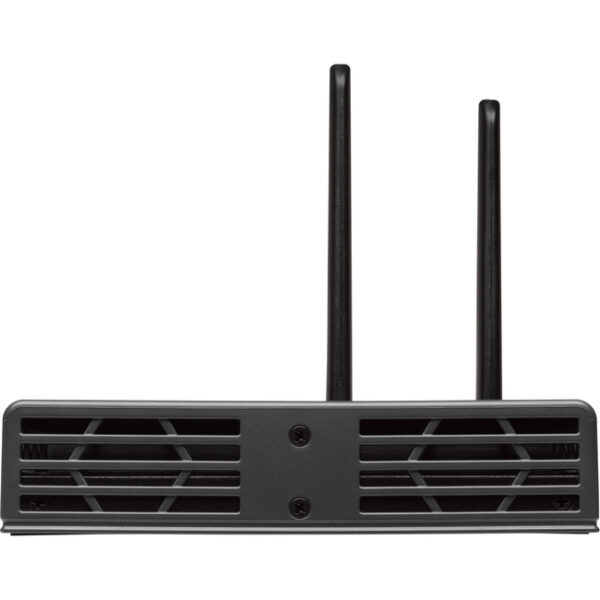

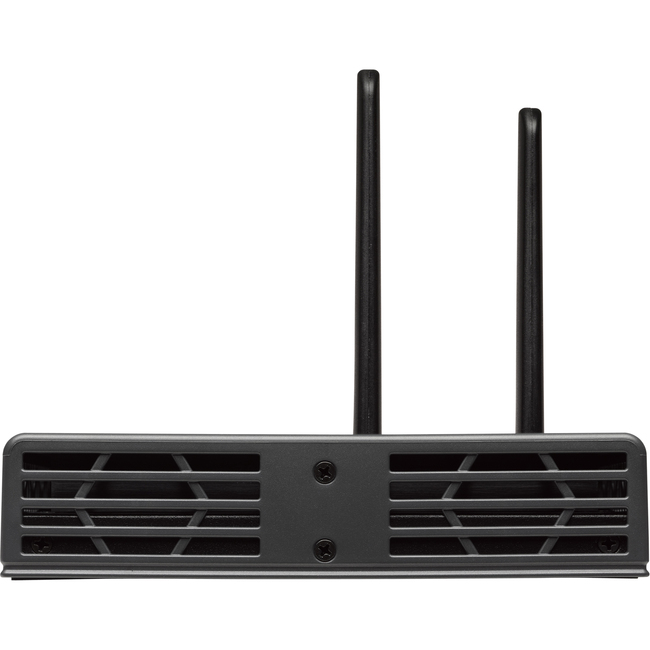

The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) Family designed in compact hardened and nonhardened form factors, is the smallest Cisco IOS Software router with support for integrated third-generation (3G) wireless WAN (mobile broadband backhaul). The Cisco 819 provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability. Transparently integrated into Cisco IOS Software as an enterprise-class feature, the Cisco 819 hardened ISR provides highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links. Figure 1 shows a Cisco 819(H)G Integrated Services Router.
Product Type: Wireless Integrated Services Router
Wireless Specifications
Broadband Transmission Technology: Cellular
ISM Band: No
UNII Band: No
Cellular Generation: 3G
Cellular Network Supported:
- WCDMA 850
- WCDMA 900
- WCDMA 1900
- WCDMA 2100
- GSM 850
- GSM 900
- GSM 1800
- GSM 1900
Cellular Data Connectivity Technology:
- HSPA
- HSDPA
- UMTS
- EDGE
- GPRS
Total Number of Antennas: 2
Interfaces/Ports
Number of Network (RJ-45) Ports: 4
USB: Yes
PoE (RJ-45) Port: No
Number of Broadband (RJ-45) Ports: 1
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SIM Card
Network & Communication
Ethernet Technology: Fast Ethernet
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
Height: 1.7″
Width: 8.1″
Depth: 7.7″
Weight (Approximate): 3.20 lb
