Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-AP1242AG-S-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG

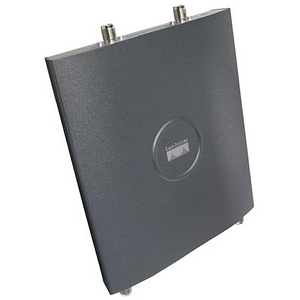

Product Name: Aironet 1242AG Access Point
Marketing Information:
The Aironet 1242AG IEEE 802.11a/g Non-modular Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11a/b/g
Total Number of Antennas: 4
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 900 ft
Wireless Transmission Speed: 108 Mbit/s
Interfaces/Ports
Ethernet Technology: Fast Ethernet
Management Port: Yes
Physical Characteristics
Form Factor:
- Wall Mountable
- Desktop
Height: 1.1″
Depth: 8.5″
Weight (Approximate): 2 lb
Miscellaneous
Package Contents:
- Aironet 1242AG IEEE 802.11a/g Non-modular Access Point
- Mounting hardware kit
- Quick Start Guide: Cisco Aironet 1240AG Series Access Point
- Safety Warnings for Cisco Aironet 1240AG Series Access Points
- Cisco product registration and Cisco documentation feedback cards
Mounting plate:
- Cable security bracket
- 2 x suspended ceiling T-rail clips (accommodates standard and recessed T-rails)
- 1 x security hasp
- 4 x (6 x 32 x ½ inches) pan head Phillips machine screws
- 1 x (8 x 18 x ¾ inches) pan head Phillips sheet metal screws
- 2 x No. 8 plastic wall anchors
- 1 x (10 x 24) nut (for ground stud on mounting bracket)
- 4 x rubber foot pads
- 2 x cable tie wraps
Warranty
Limited Warranty: 1 Year
