Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-LAP1242AG-A-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG

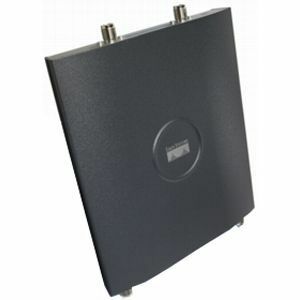

Product Name: Aironet 1242AG Wireless Access Point
Marketing Information:
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point works in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). It can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS Software and may optionally operate with the Cisco Works Wireless LAN Solution Engine (WLSE).
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11a/b/g
Total Number of Antennas: 4
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 950 ft
Wireless Transmission Speed: 108 Mbit/s
Interfaces/Ports
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Physical Characteristics
Form Factor: Wall Mountable
Height: 1.1″
Depth: 8.5″
Weight (Approximate): 2 lb
Miscellaneous
Package Contents:
- Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point
- Mounting hardware kit
- Quick Start Guide: Cisco Aironet 1240AG Series Access Point
- Safety Warnings for Cisco Aironet 1240AG Series Access Points
- Cisco product registration and Cisco documentation feedback cards
Mounting plate:
- Cable security bracket
- 2 x suspended ceiling T-rail clips (accommodates standard and recessed T-rails)
- 1 x security hasp
- 4 x (6 x 32 x ½ inches) pan head Phillips machine screws
- 1 x (8 x 18 x ¾ inches) pan head Phillips sheet metal screws
- 2 x No. 8 plastic wall anchors
- 1 x (10 x 24) nut (for ground stud on mounting bracket)
- 4 x rubber foot pads
- 2 x cable tie wraps
Warranty
Limited Warranty: 1 Year
