Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-AP1542D-B-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Series: 1540
Product Model: 1542D

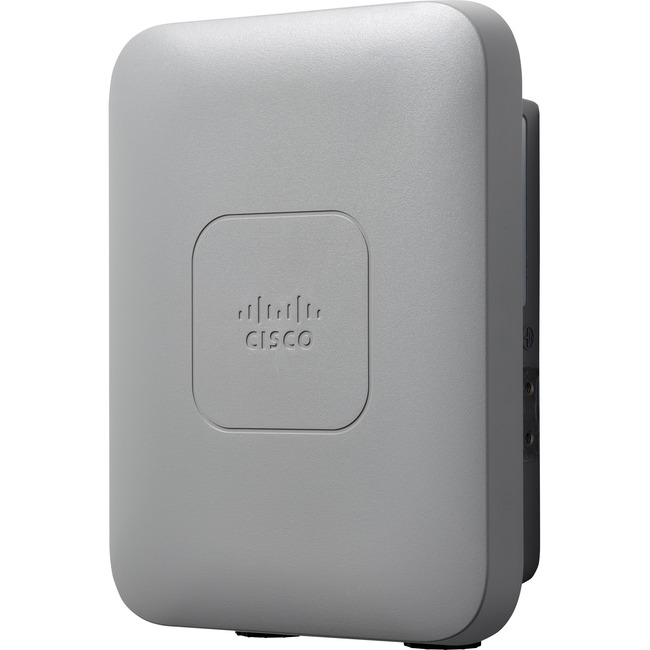

Product Name: Aironet 1542D Wireless Access Point
Marketing Information:
Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.
The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.
Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
Features and Benefits
By adhering to the 802.11ac Wave 2 standard, the 1540 Series provides a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.
In recent years corporate users have increasingly preferred wireless access as the form of network connectivity due to its convenience. With this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience. The 1540 Series delivers this performance with highly secure and reliable wireless connections for mobile end users.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 5 GHz
- 2.40 GHz
Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 1.14 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor:
- Wall Mountable
- Pole-mountable
Height: 2.4″
Width: 5.9″
Depth: 7.9″
Weight (Approximate): 2.75 lb
Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: 1 Year
