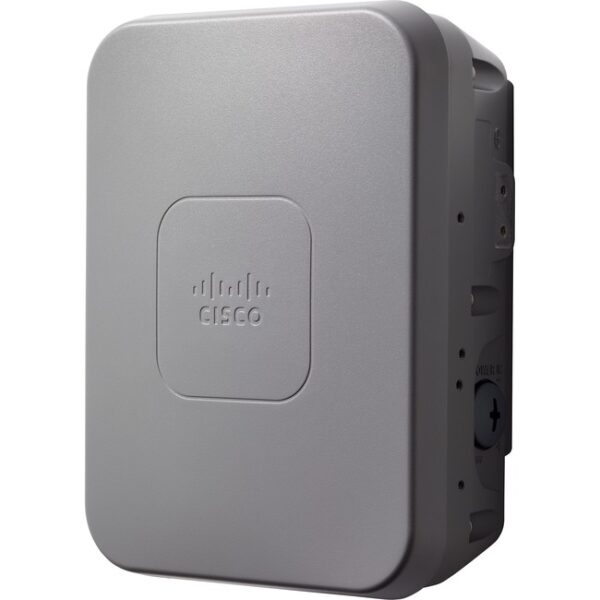

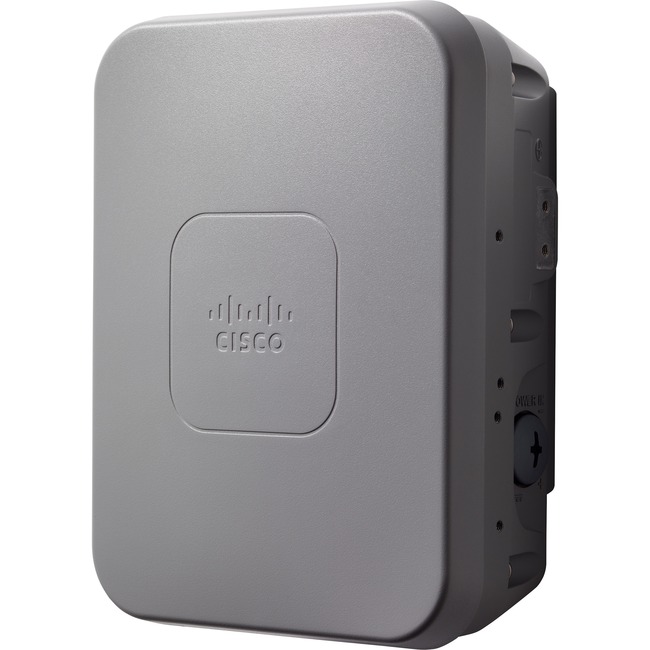

Cisco Aironet 1562D IEEE 802.11ac 1.30 Gbit/s Wireless Access Point

Cisco Aironet® 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.

Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers, enterprise networks, and public safety networks that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:

• Cisco CleanAir® technology for spectrum intelligence

• Cisco ClientLink technology for beamforming

• Radio Resource Management (RRM) for dynamic transmitter channel and power control

Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.

Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:

• 5 GHz
• 2.40 GHz

Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 1.30 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
PoE (RJ-45) Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Physical Characteristics
Height: 9″
Width: 6.8″
Depth: 4.3″
Weight (Approximate): 5.70 lb
Miscellaneous
Country of Origin: China
