Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-AP1562E-K-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Series: 1560
Product Model: 1562E

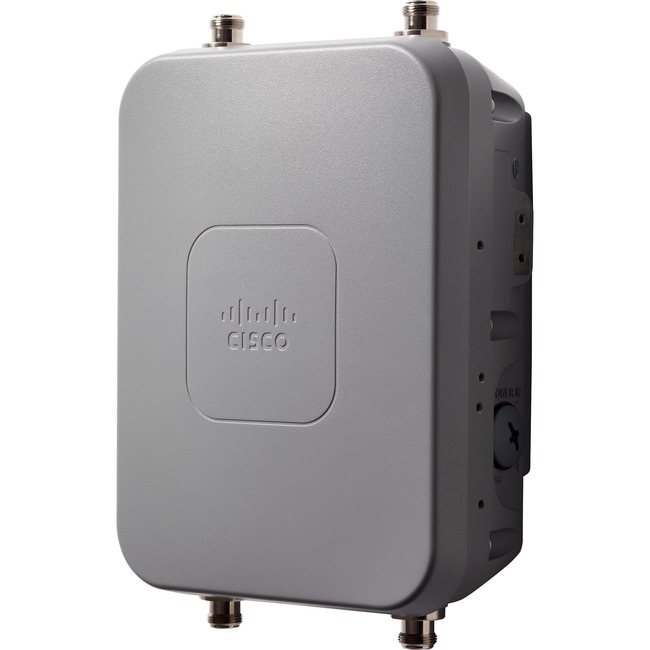

Product Name: Aironet 1562E Wireless Access Point
Marketing Information:
Cisco Aironet® 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.
Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:
- Cisco CleanAir® technology for spectrum intelligence
- Cisco ClientLink technology for beamforming
- Radio Resource Management (RRM) for dynamic transmitter channel and power control
Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Network Band: Dual Band
Frequency Band:
- 5 GHz
- 2.40 GHz
Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 1.30 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:
- AES
- WPA
- WPA2
Ingress Protection (IP) Rating: IP67
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Management Port: Yes
Power Description
Power Consumption: 25 W
Physical Characteristics
Antenna Form Factor: External
Height: 9″
Width: 6.8″
Depth: 3.9″
Weight (Approximate): 5.60 lb
Warranty
Limited Warranty: 1 Year
