Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-AP1572IC1-B-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Series: 1570
Product Model: 1572IC

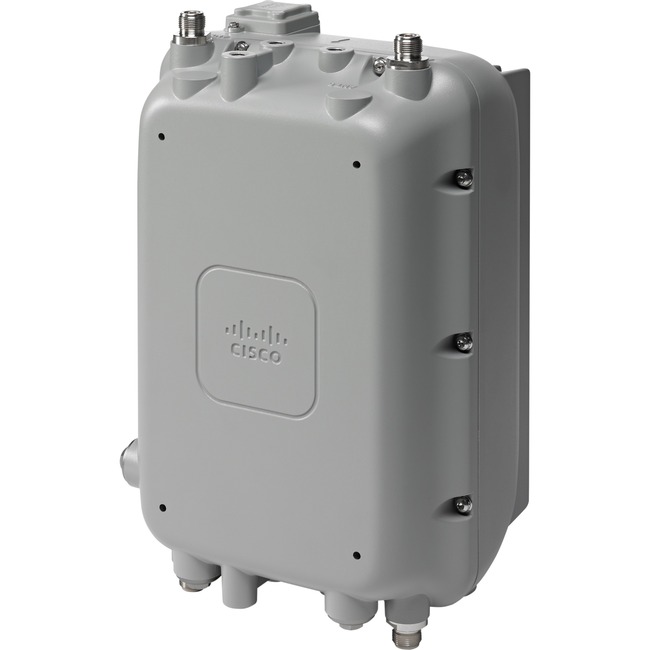

Product Name: Aironet 1572IC Wireless Access Point
Marketing Information:
Highest-Performing Outdoor Wireless AP
The Cisco Aironet 1570 Series outdoor access point is ideal for both enterprise and carrier-class network operators looking to extend Wi-Fi coverage outdoors. It’s the industry’s highest-performing outdoor AP and supports the latest Wi-Fi standard, 802.11ac, with data connection speeds up to 1.3 Gbps. This industrial-grade AP supports 4×4 multiple-input and multiple-output (MIMO) smart antenna technology and three spatial streams for optimum performance.
The Aironet 1570 provides higher throughput over a larger area with more pervasive coverage. The AP is also well suited to high-density environments where many users in close proximity generate RF interference that needs to be managed. Examples of environments that can benefit from the Aironet 1570 Series:
- Outdoor enterprise campuses
- Outdoor university and school campuses
- Public venues: stadiums, train stations, airports
- Service provider networks: WiFi offload for mobile, fixed-line, and cable operators
- Mining operations
- Manufacturing yards
- Municipalities
- Large metropolitan areas
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 2.46 GHz
- 5.83 GHz
Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 1.27 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: No
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor: Pole-mountable
Height: 11.8″
Width: 7.9″
Depth: 7.9″
Weight (Approximate): 11.50 lb
Warranty
Limited Warranty: 1 Year
