Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-ANT5160V-R
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Aironet
Product Model: AIR-ANT5160V-R

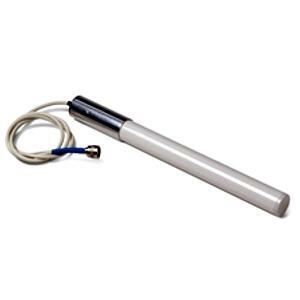

Product Name: Aironet Omnidirectional Antenna
Marketing Information:
The antenna is a ruggedized high-performance colinear antenna that operates in the 5-GHz frequency range and is designed for use in large rooms or vaulted areas where extended coverage is needed. The antenna is designed to be used indoors or outdoors and can be mounted on a mast.
Product Type: Antenna
Technical Information
Directivity: Omni-directional
Maximum Antenna Range: 823.5 ft
Frequency Band Type: SHF
Operating Frequency Range: 5.15 GHz to 5.85 GHz
Antenna Gain: 6 dB
Interfaces/Ports
Connector Type: RP-TNC
Physical Characteristics
Height: 12″
Width: 1″
Diameter: 1″
Weight (Approximate): 5.30 oz
Miscellaneous
Application/Usage: Wireless Data Network
Package Contents:
- Omni-directional Antenna
Ceiling mount kit consists of the following hardware:
- One T-rail grid bracket
- One bracket plate
- Two internal tooth lock washers
- Two #6-32 x 1/4-in. SS Phillips machine screws
- One I-beam clamp
- One 1/4-in. flat washer
- One 1/4-in. split lock washer
- One 1/4 x 20 x 1/2-in. hex head bolt
Pole (mast) mount kit consists of the following hardware:
- Six 5/16-in. x 18 SS hex nuts
- Four 5/16-in. SS lock washers
- One U-bolt
- One V-bracket
- Two base brackets
- Two 5/16-in. flat washers
Compatibility:
- Cisco Aironet 1200 Series Access Points
Warranty
Limited Warranty: 1 Year
