Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: ASA5520-AIP20-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 5500
Product Model: ASA 5520

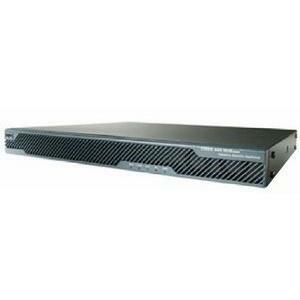

Product Name: ASA 5520 VPN/Firewall with SSM-AIP-20
Marketing Information:
The Cisco ASA 5520 Adaptive Security Appliance delivers a wide range of security services with Active/Active high availability and Gigabit Ethernet connectivity for medium-sized enterprise networks, in a modular, high performance appliance. Using its four Gigabit Ethernet interfaces and support for up to 25 VLANs, businesses can easily deploy these security services into multiple zones within their network. The Cisco ASA 5520 Adaptive Security Appliance scales with businesses as their network security requirements grow, delivering solid investment protection. Businesses can extend their IPSec and SSL VPN capacity through multiple means to support a larger number of mobile workers, remote sites, and business partners. VPN capacity can be increased by taking advantage of the integrated VPN clustering and load-balancing capabilities of the Cisco ASA 5520 Adaptive Security Appliance, as well as more than doubling each platform’s VPN capacity through the installation of a VPN upgrade license. The advanced application layer security and anti-x defenses provided by the Cisco ASA 5520 Adaptive Security Appliance can be extended by deploying a high performance Security Services Module. Using the optional security context capabilities of the Cisco ASA 5520 Adaptive Security Appliance, businesses can deploy up to 10 virtual firewalls within an appliance to enable compartmentalized control of security policies on a departmental level. This virtualization strengthens security and reduces overall management and support costs while consolidating multiple security devices into a single appliance.
Product Type: Network Security/Firewall Appliance
Technical Information
Firewall Protection Supported:
- Intrusion Prevention
- Antivirus
- Worm Scanning
- Malware Protection
Firewall Throughput: 56.25 MB/s
Encryption Standard:
- 3DES
- AES
Interfaces/Ports
Total Number of Ports: 5
USB: Yes
Media & Performance
VPN Throughput: 28.13 MB/s
Network & Communication
Ethernet Technology: Fast Ethernet
Network Standard:
- 10/100Base-TX
- 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SSM
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.8″
Width: 17.5″
Depth: 13.2″
Weight (Approximate): 20 lb
Miscellaneous
Package Contents:
- ASA 5500 Series Software v7.0
- ASA 5500 Strong Encryption License (3DES/AES)
- ASA AIP Security Service Module-20 included with ASA systems
- ASA 5500 Series AIP Software 5.0 for Security Service Module
- VMS 5 Device Basic License
- Power Cord,110V
- ASA 5500 VPN Base License
- Cisco VPN Client Software (Windows, Solaris, Linux, Mac)
Warranty
Limited Warranty: 90 Day
