Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: A9K-1X100GE-SE
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

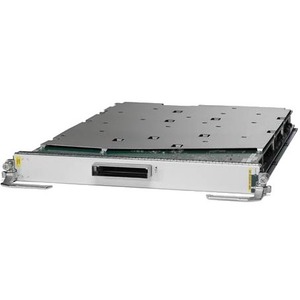

Product Name: ASR 9000 1-Port 100GE Service Edge Optimized Line Card, Requires CFP optics
Marketing Information:
The Cisco ASR 9000 Series 1-Port 100 Gigabit Ethernet Line Cards are fully compatible with all Cisco ASR 9000 Series chassis, route switch processors (RSPs), and line cards. No hardware upgrade to the chassis or cooling system is required. Total bandwidth is dependent on the number and type of RSPs installed. The Cisco ASR 9000 Series 1-Port 100 Gigabit Ethernet Line Cards are also fully compatible with the 22-slot Cisco ASR 9922 chassis.
Each line card provides simultaneous support for both Layer 2 and Layer 3 services and features, helping operators qualify and stock a single line card that can be deployed in any combination of Layer 2 and Layer 3 applications, thereby reducing capital expenditures (CapEx) and operating expenses (OpEx), as well as reducing the time required to develop and deploy new services. The Cisco ASR 9000 Series 1-Port 100 Gigabit Ethernet line cards set a new standard for Layer 2 and Layer 3 service density and scale, allowing operators to offer predictable, managed transport services while optimizing the use of network assets.
The line cards, with their synchronization circuitry and dedicated backplane timing traces for accessing the RSP’s Stratum-3 subsystem, provide standards-based line-interface functions for delivering and deriving transport-class network timing, allowing support of network-synchronized services and applications such as mobile backhaul and time-division multiplexing (TDM) migration. Coupled with the proper RSP, the line cards can also be used for applications requiring IEEE 1588v2 synchronization services. Recognizing that real-time media dominate next-generation services, Cisco has integrated media-monitoring technology into the Cisco ASR 9000 Series Ethernet line cards. This multimedia technology allows real-time monitoring and statistics collection of real-time video and voice flows, facilitating proactive maintenance and management of today’s comprehensive media services.
The Cisco ASR 9000 Series can extend 100-Gigabit Ethernet transport over an IP over dense wave-division multiplexing (IPoDWDM) network when used with the Cisco ONS 15454 DWDM transponder solution. Distances of up to 2000 km can be achieved while using the optical protection capabilities of the DWDM network.
Product Type: Expansion Module
Packaged Quantity: 1
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: CFP
Physical Characteristics
Height: 14″
Width: 1.7″
Depth: 20.5″
Weight (Approximate): 17.20 lb
Miscellaneous
Compatibility: Cisco ASR 9000 Series Routers
