Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSC-C220-M5L
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C220 M5

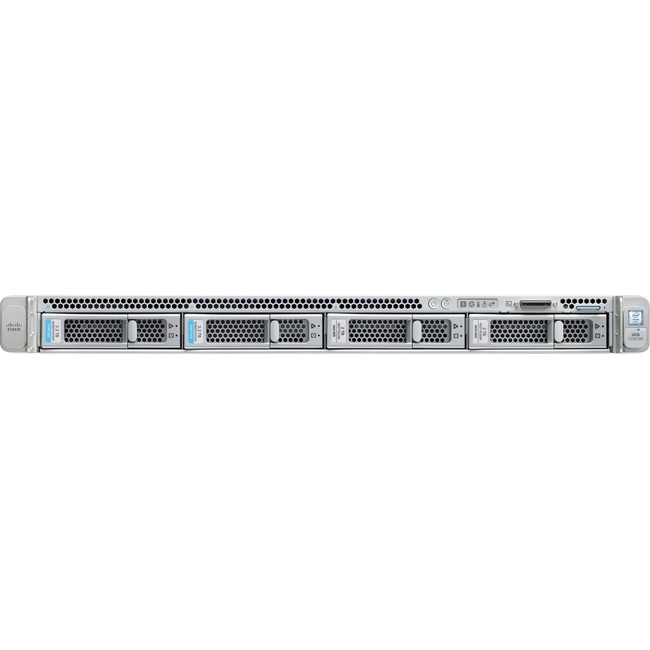

Product Name: UCS C220 M5 Barebone System
Marketing Information: The UCS C220 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C620
Memory
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 24
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5″ Bays: 4
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 31″
Weight (Approximate): 37.50 lb
