Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: R200-1120402W-CH
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C200 M2

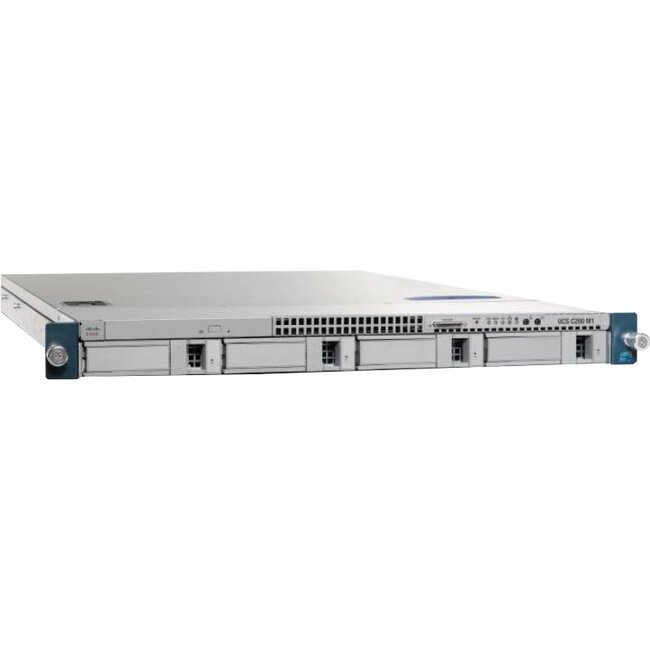

Product Name: UCS C200 M2 Barebone System
Marketing Information:
Cisco® UCS C-Series Rack-Mount Servers extend unified computing innovations to an industry-standard form factor to help reduce total cost of ownership (TCO) and increase business agility. Designed to operate both in standalone environments and as part of the Cisco Unified Computing System™, the series employs Cisco technology to help customers handle the most challenging workloads. The series incorporates a standards-based unified network fabric, Cisco VN-Link virtualization support, and Cisco Extended Memory Technology. It supports an incremental deployment model and protects customer investments with a future migration path to unified computing.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported: Xeon
64-bit Processing: Yes
Memory
Maximum Memory Supported: 96 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1333/PC3-10600
Number of Total Memory Slots: 12
Storage
Optical Drive Type: DVD-Writer
Controllers
Controller Type:
- Serial ATA/300
- Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 5
Number of External 5.25″ Bays: 1
Number of 3.5″ Bays: 4
Number of Total Expansion Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Network (RJ-45): Yes
Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 650 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7″
Width: 16.9″
Depth: 27.8″
