Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSC-C420-M3
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C420 M3

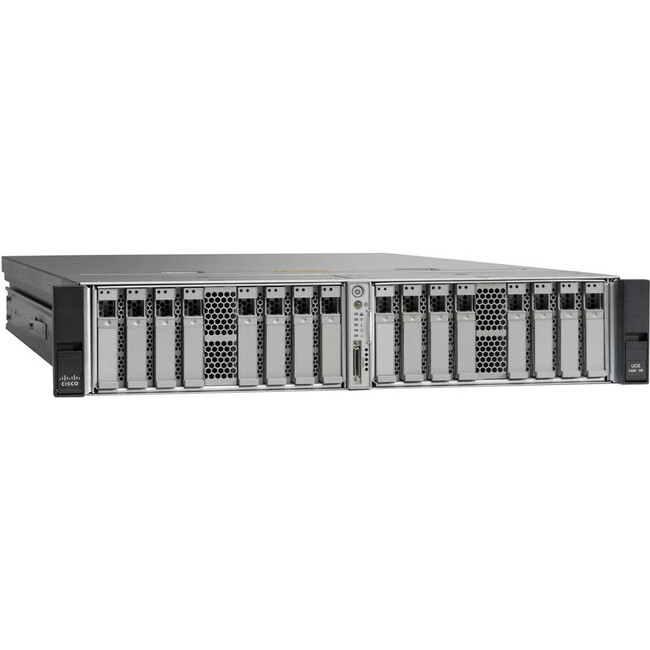

Product Name: UCS C420 M3 Barebone System
Marketing Information:
The Cisco UCS® C420 M3 Rack Server is a high-density, 4-socket, 2-rack-unit (2RU) rack server designed for computing, I/O, storage, and memory-intensive standalone applications. The Cisco UCS C420 M3 extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) using Intel Xeon processor E5-4600 Series multicore processors to deliver increased performance and efficiency.
Product Type: Barebone System
Processor
Number of Processors Supported: 4
Processor Supported: Xeon
Chipset
Chipset Manufacturer: Intel
Memory
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 48
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 16
Number of Internal 2.5″ Bays: 16
Number of Total Expansion Slots: 7
Number of PCI Express x8 Slots: 5
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 5
Network (RJ-45): Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1200 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 31.5″
Weight (Approximate): 86 lb
