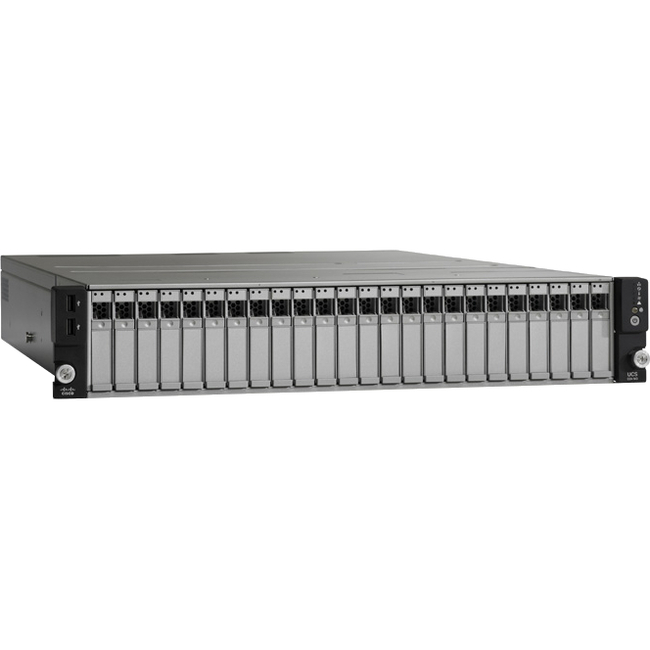

Cisco Barebone System – 2U Rack-mountable – Socket B2 LGA-1356 – 2 x Processor Support

The Cisco UCS C24 M3 Rack Server is designed for both outstanding economics and internal expandability. The Cisco C24 M3 server targets entry level virtualization, IT and web infrastructure as well as storage-intensive infrastructure workloads from big data and small to medium databases to file serving and windows storage servers. Building on the success of the Cisco UCS C-Series Rack Servers, the Cisco UCS C24 M3 server and the Cisco UCS Virtual Interface Card 1225 (VIC) extend the capabilities of the Cisco UCS portfolio in a two-rack unit (2R) form factor. Combined with the Intel® Xeon® processor (E5-2400 product family), it delivers superior performance, flexibility, and efficiency gains.

Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Socket: Socket B2 LGA-1356
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C600
Memory
Maximum Memory Supported: 384 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 12
Controllers
Controller Type:

• Serial ATA/300
• Serial Attached SCSI (SAS)

RAID Supported: Yes
RAID Levels: 0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 256 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 24
Number of Internal 2.5″ Bays: 24
Number of Total Expansion Slots: 5
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 7
Network (RJ-45): Yes
Power Description
Input Voltage:

• 110 V AC
• 220 V AC

Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5″
Width: 16.9″
Depth: 26″
Weight (Approximate): 47.18 lb
Miscellaneous
Package Contents:

• UCS C24 M3 Barebone System
• Rail Kit

Warranty
Limited Warranty: 3 Year
