Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B200-M3
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B200 M3

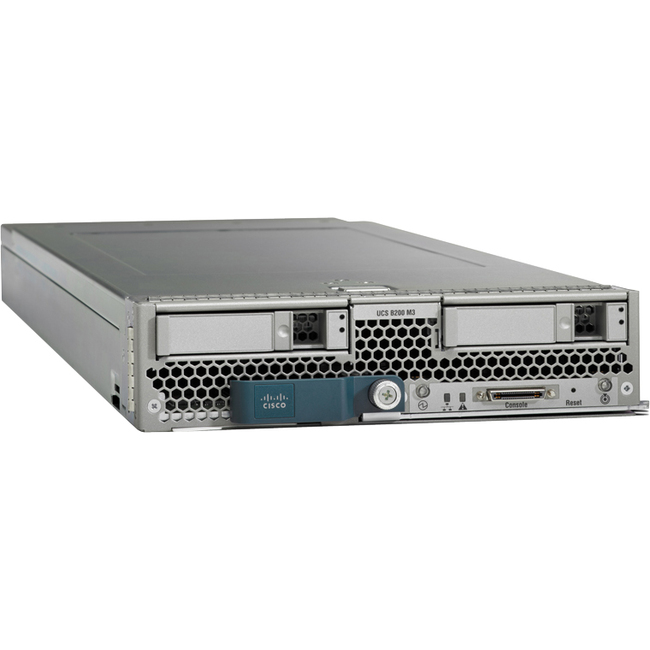

Product Name: Base UCS B200 M3 Blade Server
Marketing Information:
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and CSeries Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The Cisco UCS B200 M3 Blade Server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 Blade Server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® processor E5-2600 and E5-2600 v2 product families, with up to 768 GB of RAM (using 32-GB DIMMs), two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis. With a larger power budget per blade server, Cisco can design uncompromised expandability and capabilities in its blade servers, as evidenced by the new Cisco UCS B200 M3, with its leading memory slot and drive capacity.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C600
Memory
Maximum Memory Supported: 768 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1866/PC3-15000
Number of Total Memory Slots: 24
Storage
Total Hard Drive Capacity Supported: 2 TB
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 256 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 2
Number of Internal 2.5″ Bays: 2
Interfaces/Ports
Network (RJ-45): Yes
Number of SAS Interfaces: 2
Operating System
Operating System Supported:
- Windows Server
- SuSE Linux Enterprise Server 11.2
- Red Hat Enterprise Linux
Physical Characteristics
Form Factor: Blade
Height: 2″
Width: 8″
Depth: 24.4″
Weight (Approximate): 9.62 lb
