Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B200-M4-U
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B200 M4

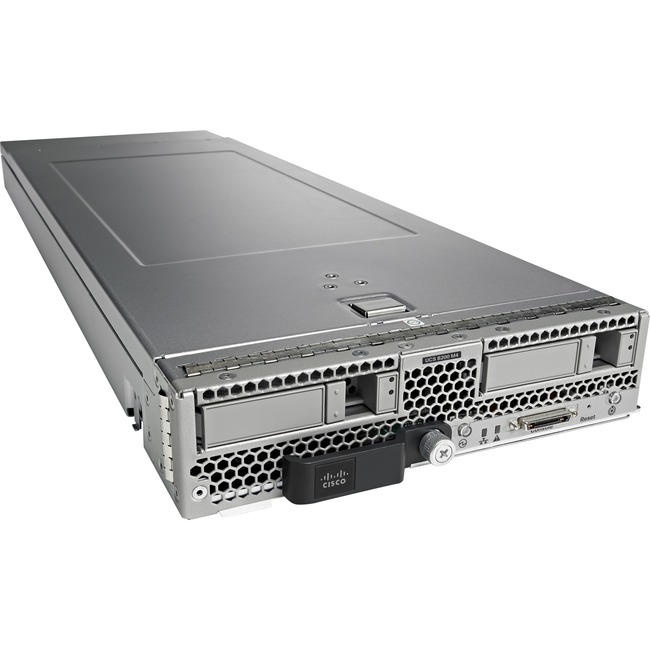

Product Name: UCS B200 M4 Barebone System
Marketing Information: Delivering performance, versatility and density without compromise, the Cisco UCS B200 M4 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M4 blade server extends the capabilities of Cisco’s Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M4 harnesses the power of the latest Intel® Xeon® E5-2600 v3 Series processor family CPUs with up to 1536 GB of RAM (using 64 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C610
Memory
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 24
Controllers
Controller Type:
- 12Gb/s SAS
- Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 1
Number of USB 3.0 Ports: 1
Physical Characteristics
Form Factor: Blade
Height: 2″
Width: 8″
Depth: 24.4″
Weight (Approximate): 15.98 lb
Warranty
Limited Warranty: 3 Year
