Cisco Barebone System – Blade – 4 x Processor Support

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-EX-M4-3A
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B460 M4
Product Name: UCS B460 M4 Barebone System

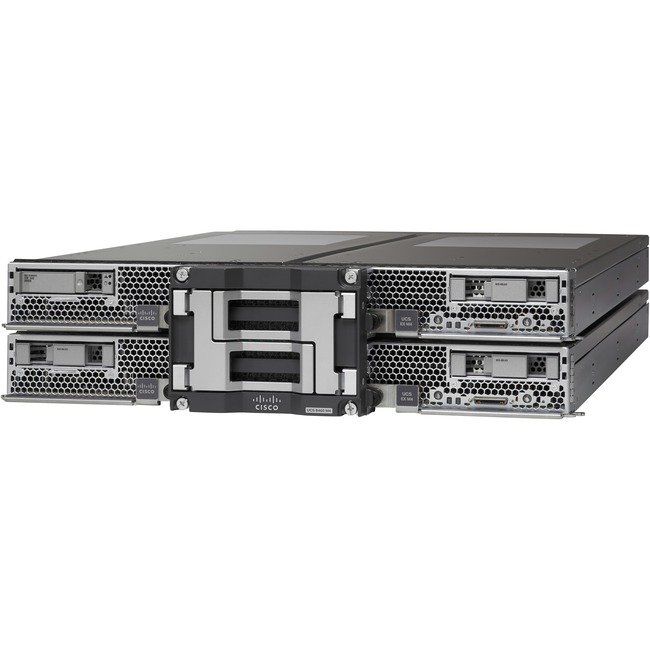

Marketing Information: The Cisco® UCS B460 M4 High-Performance Blade Server is a four-socket, full-width double-high blade server supporting the Intel® Xeon® E7-4800 v2 and E7-8800 v2 series processor family CPUs, with up to 6 terabytes (TB) of double-data-rate 3 (DDR3) memory in 96 slots, up to 4 small form factor (SFF), hot-swappable drive bays for hard disk drives (HDDs) or solid state drives (SSDs), four dual-port and two quad-port mezzanine card connections for up to 320 Gbps aggregate I/O bandwidth. The Cisco UCS B460 M4 server is designed to power the most demanding enterprise applications.
Product Type: Barebone System
Processor
Number of Processors Supported: 4
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C602J
Memory
Maximum Memory Supported: 6 TB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 96
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
Network & Communication
Ethernet Technology: Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of Internal 2.5″ Bays: 4
Physical Characteristics
Form Factor: Blade
Height: 4″
Width: 17.2″
Depth: 25.5″
Weight (Approximate): 66.14 lb
Warranty
Limited Warranty: 3 Year
