Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B200-M3=
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B200 M3

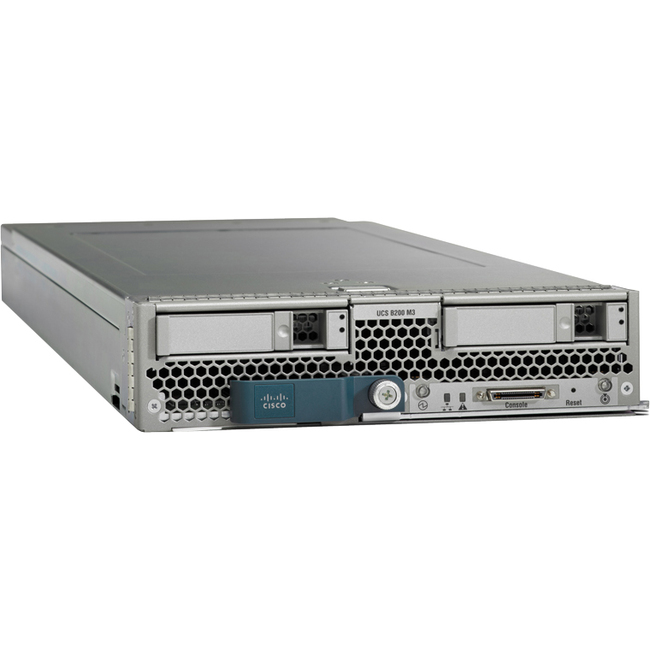

Product Name: UCS B200 M3 Barebone System
Marketing Information: Density and Performance without Compromise
Delivering performance, versatility, and density without compromise, the Cisco UCS B200 M3 Blade Server addresses the broadest set of workloads, from IT and web infrastructure to distributed database.
Building on the success of the Cisco UCS B200 M2 Blade Servers, the enterprise-class Cisco UCS B200 M3 further extends the capabilities of the Cisco Unified Computing System portfolio in a half-blade form factor. The Cisco UCS B200 M3 Server harnesses the power of the Intel® Xeon® E5-2600 processor product family, up to 786 GB of RAM, two hard drives, and up to 8 x 10GE to deliver exceptional levels of performance, memory expandability, and I/O throughput for nearly all applications.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C600
Memory
Maximum Memory Supported: 768 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 24
Storage
Total Hard Drive Capacity Supported: 1.20 TB
Controllers
Controller Type:
- 6Gb/s SAS
- Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: MGA G200e
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Shared
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 2
Number of Internal 2.5″ Bays: 2
Number of Total Expansion Slots: 2
Interfaces/Ports
Network (RJ-45): Yes
Number of SAS Interfaces: 2
Physical Characteristics
Form Factor: Blade
Height: 2″
Width: 8″
Depth: 24.4″
Weight (Approximate): 9.61 lb
