Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B200-M3-U
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B200 M3

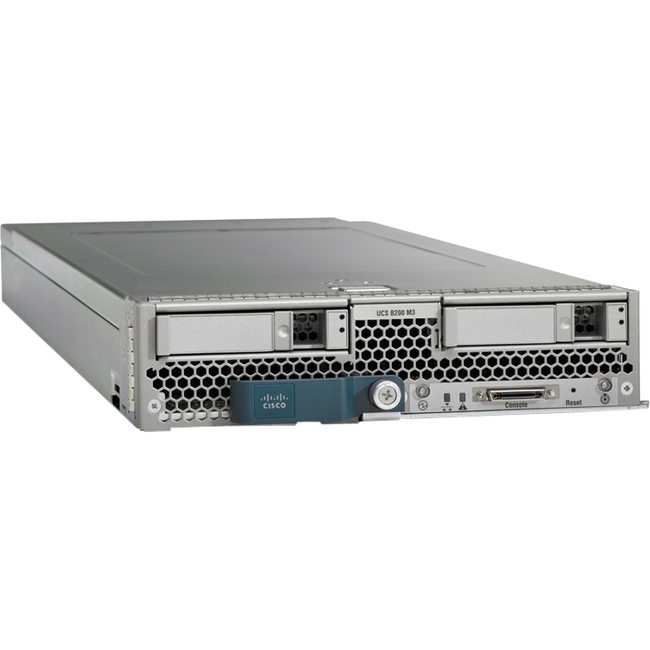

Product Name: UCS B200 M3 Barebone System
Marketing Information:
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest server expansion of the Cisco UCS portfolio includes the new Cisco UCS B200 M3 Blade Server along with the new Cisco UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU). These three new servers increase compute density through more cores and cache balanced with more memory capacity and drives and with faster I/O. Together these server improvements and complementary Cisco UCS system advancements deliver the best combination of features and cost efficiency to support IT’s diverse needs.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Memory
Maximum Memory Supported: 768 GB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory Slots: 24
Storage
Total Hard Drive Capacity Supported: 1.20 TB
Controllers
Controller Type:
- Serial ATA/600
- 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 2
Number of Total Expansion Slots: 2
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Form Factor: Blade
Warranty
Limited Warranty: 90 Day
