Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B420-M3-U
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B420 M3

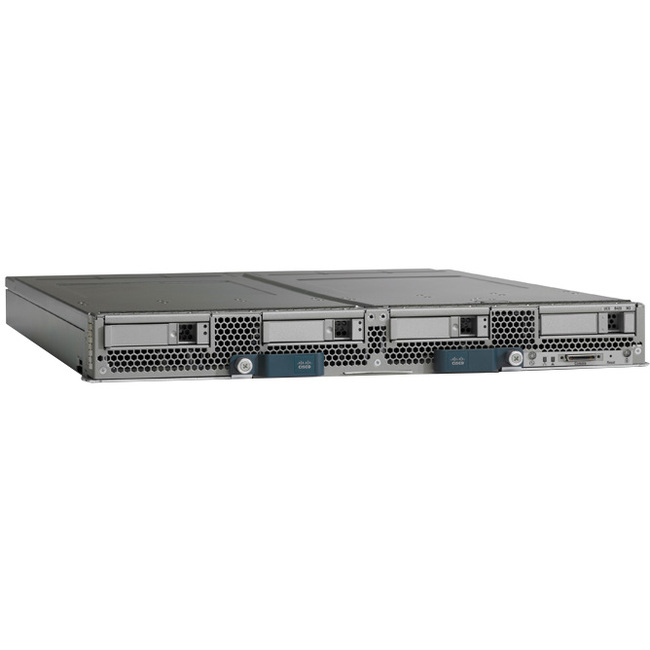

Product Name: UCS B420 M3 Barebone System
Marketing Information: Delivering Outstanding Scalability and Expandability
Designed for enterprise performance and scalability, the Cisco UCS B420 M3 Blade Server combines the advantage of four-socket computing with the cost-effective Intel® Xeon® processor E5-4600 product family, for demanding virtualization and database workloads. The UCS B420 M3 is a balanced, high performance platform that complements the UCS four socket blade server portfolio. It offers industry-leading computing density, I/O bandwidth, and memory footprint, The full-width UCS B420 M3 supports 1.5 TB of memory and takes full advantage UCS virtual interface card (VIC) technology for up to 160 Gbps aggregate I/O bandwidth.
Product Type: Barebone System
Processor
Number of Processors Supported: 4
Processor Socket: Socket R LGA-2011
Processor Supported: Xeon
64-bit Processing: Yes
Memory
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 48
Storage
Total Hard Drive Capacity Supported: 4 TB
Controllers
Controller Type:
- Serial ATA/600
- Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 1+0, 5
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Internal 2.5″ Bays: 4
Number of Total Expansion Slots: 3
Interfaces/Ports
Network (RJ-45): Yes
Number of SAS Interfaces: 4
Physical Characteristics
Form Factor: Blade
Warranty
Limited Warranty: 3 Year
