Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCS-SPR-C240M5-S1
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C240 M5

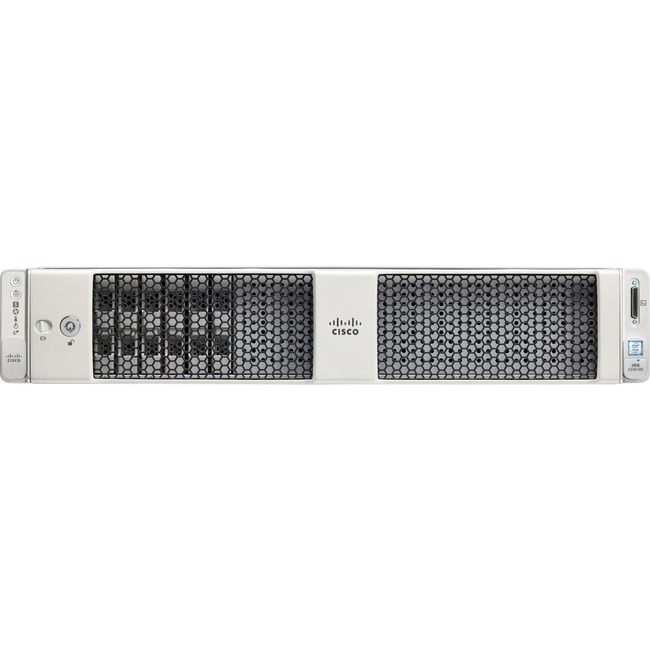

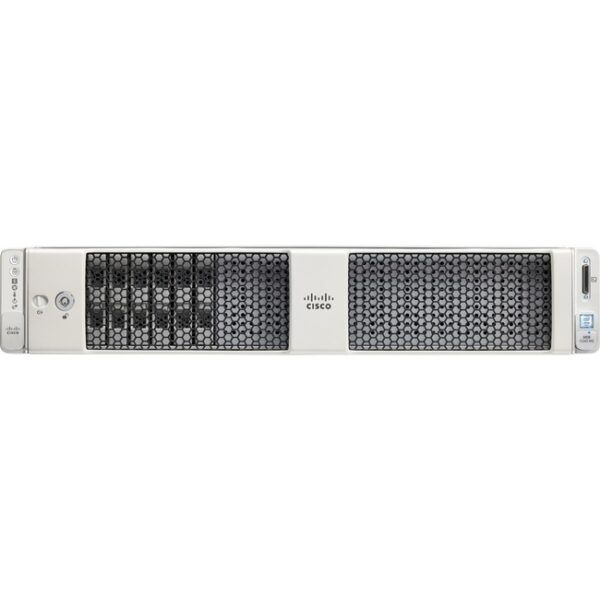

Product Name: UCS C240 M5 Server
Marketing Information:
UCS C240 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded(on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Model: 4110
Processor Core: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Number of Total Memory Slots: 24
Number of Occupied Memory Slots: 1
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 10
Number of Internal 2.5″ Bays: 10
Hot Swappable Bays: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported: 2
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 30.2″
Weight (Approximate): 57.50 lb
