Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2924-XL
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: 2924

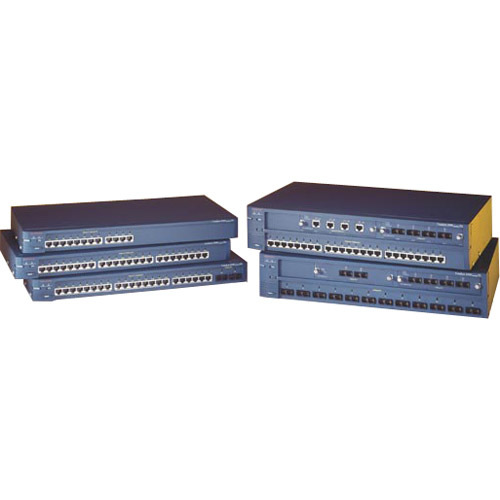

Product Name: Catalyst 2924 Ethernet Switch
Marketing Information:
The Catalyst 2924 is stackable 10/100 Ethernet switch to which you can connect workstations, Cisco IP Phones, and other network devices such as servers, routers, and other switches. The switch can be deployed as backbone switch, aggregating 10/100 and Gigabit Ethernet traffic from other network devices. It operates in full-duplex mode on all 100BASE-FX ports it checks for errors on a received packet, determines the destination port, stores the packet in shared memory, and then forwards the packet to the destination port.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Stack Port: Yes
Port/Expansion Slot Details: 24 x Fast Ethernet Network
Media & Performance
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor:
- Desktop
- Rack-mountable
Height: 1.7″
Width: 17.5″
Depth: 9.8″
Weight (Approximate): 7 lb
Miscellaneous
Package Contents:
- Catalyst 2924 Ethernet Switch
- Catalyst 2900 XL and Catalyst 3500 XL Documentation CD
- Release Notes for the Catalyst 2900 Series XL and Catalyst 3500 Series XL Cisco IOS Release 12.0(5)WC(1)
- The Cisco Documentation CD-ROM package
- AC power cord
- 4 x rubber feet for mounting the switch on a table, shelf, or desk
- 2 x mounting brackets
- Four number-12 Phillips machine screws for attaching the brackets to a rack
- Four number-8 Phillips flat-head screws for attaching the brackets to the switch (19-inch rack mount)
- Four number-8 Phillips truss-head screws for attaching the brackets to the switch (24-inch rack mount)
- One cable guide and one (two for modular switches) black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- 1 x RJ-45-to-RJ-45 rollover cable
- 1 x RJ-45-to-DB-9 adapter
- Cisco Information Packet, containing warranty, safety, and support information
Warranty
Limited Warranty: Lifetime
