Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2948G-L3
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2900
Product Model: 2948G-L3

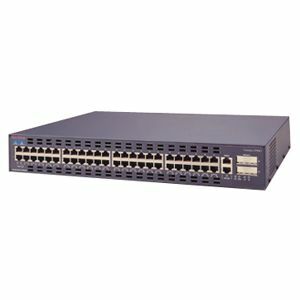

Product Name: Catalyst 2948G-L3 Ethernet Switch
Marketing Information: The Catalyst 2948G-L3 provides an aggregate throughput of more than 10 Mpps for Layer 3 switching. These data rates apply not only to IP and IPX traffic but also to IP multicast and bridged traffic and are a result of using high-speed application-specific integrated circuit (ASIC) technology on each port to perform true Layer 3 switching. The Catalyst 2948G-L3 supports a high-performance architecture with 22 Gbps bandwidth. The switch fabric is capable of supporting all 48 10/100 ports and two Gigabit uplinks simultaneously at wire speed.
The Catalyst 2948G-L3 is housed in a 1.5 rack unit (RU) chassis and can be provisioned with an optional external redundant power supply. It supports a 22 Gbps shared-memory, fully non-blocking switch fabric, high- performance RISC processor that provides the routing intelligence and individual port-based ASICs for the Layer 3 switching. The Catalyst 2948G-L3 uses Cisco Express Forwarding (CEF), which has been developed for the Cisco 12000 series gigabit switch router (GSR), the Catalyst 8500, and the Cisco 7500. This technology provides Layer 3 switching based on a topology map of the entire network that is distributed to each port-based ASIC, allowing it to make autonomous switching decisions without the involvement of a centralized CPU.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Port/Expansion Slot Details:
- 48 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 100Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: GBIC
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 70 W
Physical Characteristics
Height: 2.7″
Width: 17.1″
Depth: 18″
Weight (Approximate): 18 lb
Warranty
Limited Warranty: 90 Day
