Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2950G-12-EI
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2900
Product Model: 2950G-12-EI

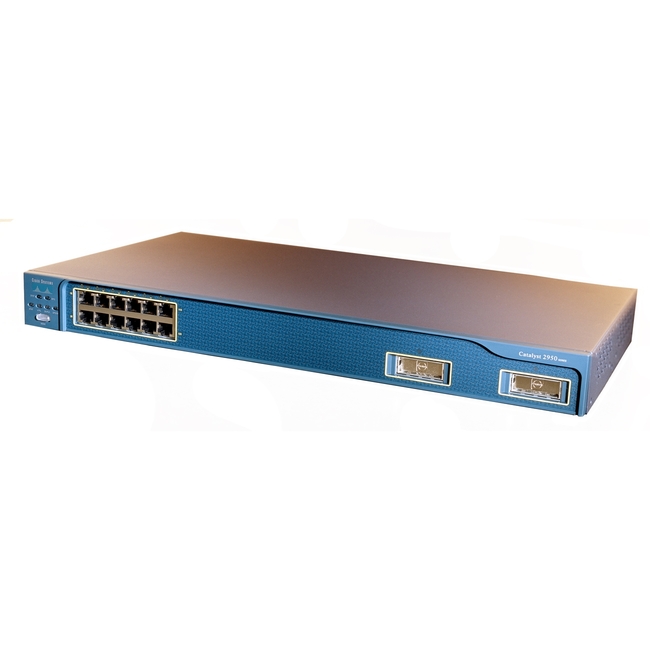

Product Name: Catalyst 2950G-12 Ethernet Switch
Marketing Information:
Cisco Catalyst® 2950G-12 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, stackable switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for midsized networks and the metro access edge. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), tothe network edgewhile maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network.
Embedded in Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition, Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged applications and network-wide services.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 12
Port/Expansion Slot Details:
- 12 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 100Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: GBIC
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 30 W
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 9.5″
Weight (Approximate): 6.50 lb
Warranty
Limited Warranty: Lifetime
