Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2950T-24
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2950
Product Model: 2950T-24

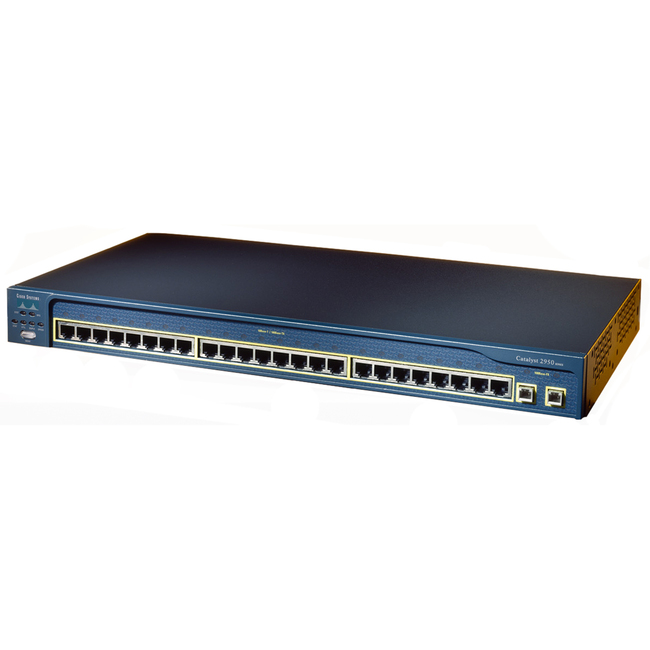

Product Name: Catalyst 2950T-24 Ethernet Switch
Marketing Information:
Cisco Catalyst 2950T-24 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, standalone switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for midsized networks and the metro access edge. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), to the network edge-while maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network.
Cisco Network Assistant is a free centralized management application that simplifies the administration task of Cisco switches, routers, and wireless access point. Cisco Network Assistant offers user-friendly GUI interface to easily configure, troubleshoot, and enable and monitor the network.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 10/100/1000Base-T
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 30 W
Miscellaneous
Package Contents:
- Catalyst 2950T-24 Switch
- Regulatory Compliance and Safety Information for the Catalyst 2950 Switch
- AC power cord (CAB-AC)
- Console cable
- One RJ-45-to-DB-9 adapter cable
- Product ownership registration card
Mounting kit containing these items:
- Four rubber feet for mounting the switch on a table, shelf, or desk
- Two 19-inch or 24-inch rack-mounting brackets
- Six number-8 Phillips flat-head screws for attaching the brackets to the switch
- Four number-8 Phillips truss-head screws for attaching the brackets to the switch
- Four number-12 Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets.
- One RPS connector cover and two number-4 pan-head screws
Warranty
Limited Warranty: Lifetime
