Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2960X-48LPD-L
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2960-X
Product Model: 2960X-48LPD-L

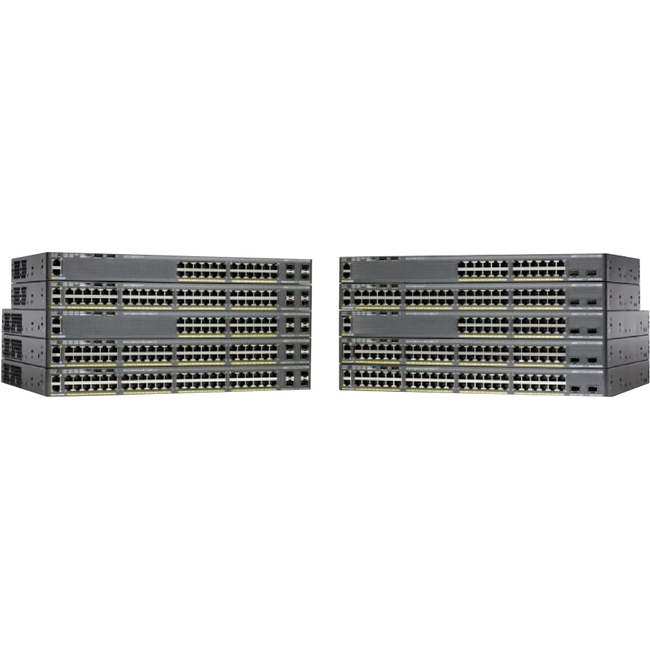

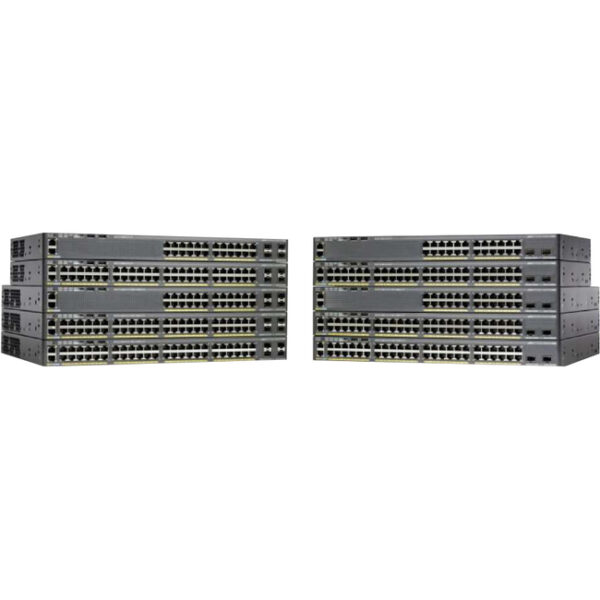

Product Name: Catalyst 2960X-48LPD-L Ethernet Switch
Marketing Information:
Catalyst 2960-X series Software Features
All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.
Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: No
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.8″
Width: 17.5″
Depth: 14.5″
Weight (Approximate): 12.90 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Warranty
Limited Warranty: Lifetime
