Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3524-PWR-XL-EN
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3500
Product Model: 3524-PWR XL

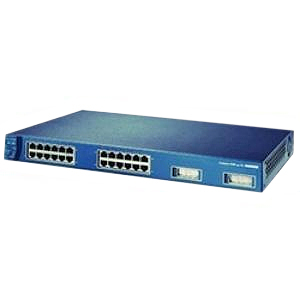

Product Name: Catalyst 3524-PWR XL Ethernet Switch
Marketing Information:
The Catalyst® 3524-PWR XL switch is a member of the Cisco Systems Catalyst 3500 Series XL, a scalable line of stackable 10/100 and Gigabit Ethernet switches that delivers premium performance, manageability, and flexibility with unparalleled investment protection. Advanced quality of service (QoS) fully integrated with Cisco IP phones and high-availability network
features make the Catalyst 3524-PWR XL the premier switching solution for customers as they prepare their local-area networks (LAN) for integrated voice, video, and data applications.
The Catalyst 3524-PWR XL switch has 24 10/100 switched ports with integrated inline power and two Gigabit Interface Converter (GBIC)-based Gigabit Ethernet ports. Integrated inline power provides DC current to devices that can accept power over traditional unshielded twisted pair (UTP) cabling(for example, the Cisco 7900 family of Cisco IP phones). The dual GBIC-based Gigabit Ethernet implementation provides customers with tremendous deployment flexibility – allowing customers to implement one type of stacking and uplink configuration today, while preserving the option to migrate that configuration in the future.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: GBIC
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Redundant Power Supply Supported: Yes
Power Consumption: 325 W
Physical Characteristics
Height: 1.8″
Width: 17.5″
Depth: 11.8″
Weight (Approximate): 12 lb
Miscellaneous
Package Contents:
- Quick Start: Catalyst 3500 Series XL Cabling and Setup
- This Catalyst 3500 Series XL Hardware Installation Guide
- Cisco IOS Desktop Switching Software Configuration Guide
- Release Notes for the Catalyst 2900 Series XL and Catalyst 3500 Series XL Cisco IOS Release 12.0(5)XU
- Cisco Documentation CD-ROM
- AC power cord
- Mounting kit containing:
– Four rubber feet for mounting the switch on a table
– Two mounting brackets
– Four Phillips flat-head screws for attaching the brackets to the switch
– Four Phillips truss-head screws for attaching the brackets to the switch
– Four Phillips machine screws for attaching the brackets to a rack
– One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets - One RJ-45-to-RJ-45 rollover cable
- One RJ-45-to-DB-9 female adapter
- Cisco Information Packet, containing warranty, safety, and support information
Warranty
Limited Warranty: Lifetime
