Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3550-24PWR-EMI
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3550
Product Model: 3550-24PWR-EMI

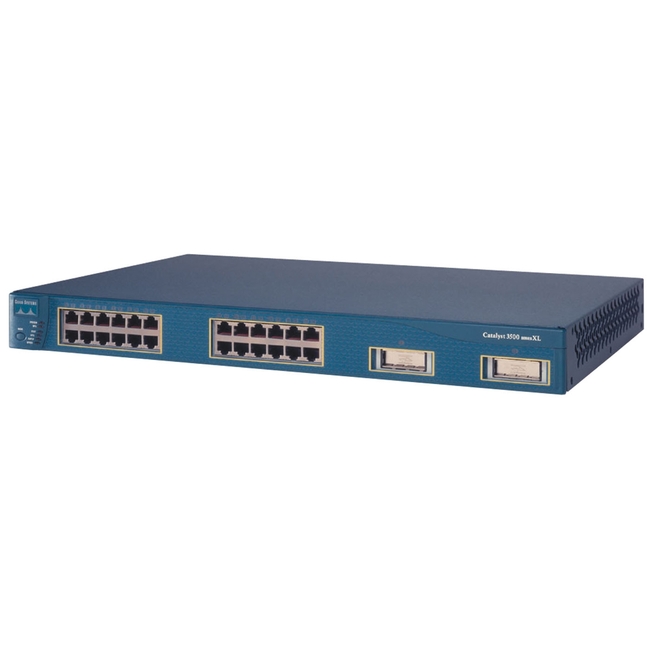

Product Name: Catalyst 3550-24PWR Ethernet Switch
Marketing Information:
The Cisco Catalyst 3550-24 PWR inline power switch is a stackable, multilayer, 24-port 10/100 switch with 2 Gigabit Interface Converter (GBIC)-based Gigabit Ethernet ports ideal for integrated voice, video, and data applications. With integrated inline power, customers can power Cisco IP phones and Cisco Aironet wireless LAN access points directly from the switch and lower the total cost of ownership (TCO) by:
- Centralizing power provisioning
- Easing deployment by eliminating the need for wall power to each device
- Eliminating the need for additional, separate wiring to power devices
The Catalyst 3550-24 PWR switch possesses all of the advanced Layer 2-4 intelligent services available in the Catalyst 3550 Series. Customers can deploy high-performance IP routing, advanced quality of service (QoS), granular rate-limiting, enhanced network security, and multicast management network-wide-while maintaining the simplicity of traditional LAN switching.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: GBIC
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Consumption: 525 W
Physical Characteristics
Height: 1.8″
Width: 17.5″
Depth: 17.4″
Weight (Approximate): 14 lb
Miscellaneous
Package Contents:
- This Catalyst 3550 Multilayer Switch Hardware Installation Guide
- Where to Find the Catalyst 3550 Documentation flyer
- Cisco Documentation CD-ROM
- AC power cord
- Mounting kit containing:
– Four rubber feet for mounting the switch on a table
– Two 19-inch rack-mounting brackets
– Six Phillips flat-head screws for attaching the brackets to the switch
– Four Phillips machine screws for attaching the brackets to a rack
– One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
– One RPS connector cover (for wall mounting)
– Two Phillips pan-head screws (for attaching the RPS cover)
– Four Phillips truss-head screws (for wall-mounting brackets) - One RJ-45-to-DB-9 adapter cable
- Cisco Information Packet, containing warranty, safety, and support information
Warranty
Limited Warranty: Lifetime
