Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3560-24PS-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3560
Product Model: 3560-24PS

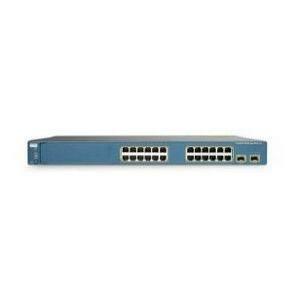

Product Name: Catalyst 3560-24PS Ethernet Switch
Marketing Information:
The Cisco Catalyst 3560 Series switches is a line of fixed configuration, enterprise-class, IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) switches in Fast Ethernet configurations that provide availability, security, and quality of service (QoS) to enhance network operations. The Catalyst 3560 is an ideal access layer switch for small enterprise wiring closets or branch office environments that are using their LAN infrastructure for the deployment of new products and applications such as IP telephones, wireless access points, video surveillance, building management systems, and remote video kiosks. Customers can deploy network-wide intelligent services, such as advanced QoS, rate limiting, access control lists, multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Embedded in the Catalyst 3560 is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Cisco Catalyst desktop switches using a standard Web browser. Cisco CMS Software provides configuration wizards that greatly simply the implementation of converged networks and intelligent network services.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption:
- 485 W
- 370 W
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 11.8″
Weight (Approximate): 11.30 lb
Miscellaneous
Package Contents:
- Catalyst 3560 Switch
- Catalyst 3560 Switch Hardware Installation Guide
- Where to Find the Catalyst 3560 Documentation flyer
- AC power cord (AC-powered switches)
- One RJ-45-to-DB-9 adapter cable
- Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack mounting brackets (also used for wall mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One redundant power system (RPS) connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
Warranty
Limited Warranty: Lifetime
