Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3560G-48PS-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3560
Product Model: 3560G-48PS-S

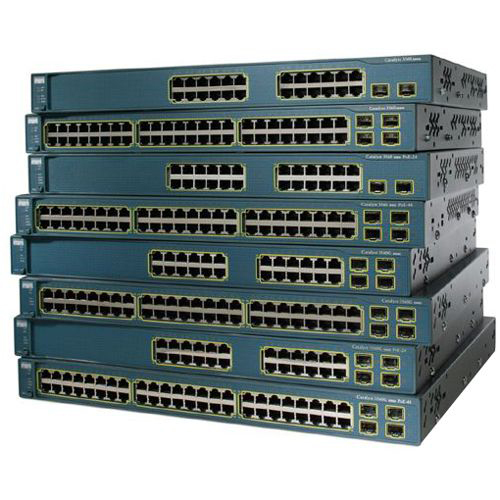

Product Name: Catalyst 3560 Gigabit Ethernet Switch
Marketing Information:
The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10Base-T
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Consumption:
- 590 W
- 370 W
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 16.1″
Weight (Approximate): 15.50 lb
Miscellaneous
Package Contents:
- Catalyst 3560 Switch
- Regulatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product registration card
- AC power cord (AC-powered switches)
- One RJ-45-to-DB-9 adapter cable
Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets (also used for wall mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One redundant power system (RPS) connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
Warranty
Limited Warranty: Lifetime
